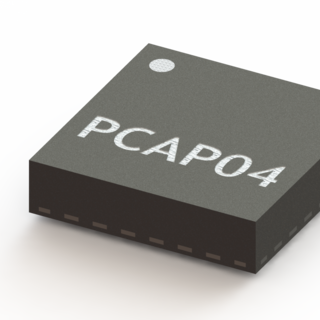

PCAP04 Capacitance-to-Digital Converter 6-Channel 500k Hz

Channel: 3 in/3 out
Application:  Building  Position sensors  Pressure sensors  Force sensors  Proximity sensor  Acceleration sensors  Inclination sensors  Humidity sensors  Dewpoint sensors  Tilt sensors  Angle sensors  Wireless applications  Level sensors  IoT devices
Package: QFN24
Input: Capacitance
Interfaces: SPI / IIC PDM / PWM
Features: 6 capacitors grounded, 3 capacitors floating Capacitance range 1pF to 100nF Internal reference 1pF to 31pF
TDC No. of hits: 3 in / 3 out
Hersteller: Sciosense

Channel: 1
Application: - Watches - Golf carts - Pool safety - Portable GPS - Bike computers - Weather stations - Sports equipment - Uninterruptible power supply - Power line conditioners - Smart grid systems - Environmental monitoring systems
Package: MLPQ 4x4 16LD
Input: lightning
Interfaces: SPI / IIC
Features: 40km range - Provides distance estimation to the head of the storm.
TDC No. of hits: no TDC No. of hits
Hersteller: Sciosense

Channel: 1
Application: Active RFID tags, real-time location systems, operator identification, access control, and wireless sensors
Package: 16-pin TSSOP 16-LD QFN (4x4)
Input: Frequency
Interfaces: SPI / IIC
Features: 16-bit programmable wake-up pattern RTC based 32 kHz XTAL, RC-OSC, or external clock
TDC No. of hits: no TDC No. of hits
Hersteller: Sciosense

Channel: 1
Application: Active RFID tags, real-time location systems, operator identification, access control, and wireless sensors
Package: 16-pin TSSOP 16-LD QFN (4x4)
Input: Frequency
Interfaces: SPI / IIC
Features: 1-D, 2-D, or 3-D wake-up pattern detection Wake-up without pattern detection selectable
TDC No. of hits: no TDC No. of hits
Hersteller: Sciosense

Channel: 1
Application: Active RFID tags, real-time location systems, operator identification, access control, and wireless sensors
Package: 16-pin TSSOP 16-LD QFN (4x4)
Input: Frequency
Interfaces: SPI / IIC
Features: 1-D, 2-D, or 3-D wake-up pattern detection Wake-up without pattern detection selectable
TDC No. of hits: no TDC No. of hits
Hersteller: Sciosense

Channel: 3 in/3 out
Application: - Force sensors - Pressure sensors - Scales - Digital load cells - Torque wrenches - Legal for trade scales - Counting scales
Package: 16-pin TSSOP 16-LD QFN (4x4)
Input: Resistance
Interfaces: 4-wire serial SPI interface
Features: RMS noise 11nV SINC5, 5Hz - Up to 80.000 peak-peak divisions (2mV/V strain)
TDC No. of hits: 4
Hersteller: Sciosense

Channel: 3 in/3 out
Application: - Force sensors - Pressure sensors - Scales - Digital load cells - Torque wrenches - Legal for trade scales - Counting scales
Package: QFN 40
Input: Resistance
Interfaces: 4-wire serial SPI interface
Features: RMS noise 11nV SINC5, 5Hz - Up to 80.000 peak-peak divisions (2mV/V strain)
TDC No. of hits: 4
Hersteller: Sciosense

Description: Evaluation Kit Digital relative humidity and temperature sensor
T - Accuracy [±°C]: 0,15
T - Range [°C]: 0 - 70
RH - Accuracy [%]: ±2
RH - Range [%]: 0 - 85
Barometric pressure - Accuracy [hPa]: Not specified
Barometric pressure - Range [hPa]: Not specified
Target: All-purpose automotive grade device
Hersteller: Sciosense
