Notavis

NOTAVIS ist Mitglied der Vision Components Group, zu der verschiedene Partner und Vertriebspartner gehören. Sie konzentrieren sich auf die Bereitstellung von industriellen Kameralösungen und haben einen starken Ruf für ihre innovative und effiziente Embedded-Vision-Technologie.

Vision Components ist seit 1996 ein Pionier im Bereich Embedded Vision und Erfinder der ersten intelligenten Kamera für den industriellen Einsatz. Vision Components entwickelt Maschinenvisions-Technologie mit Fokus auf Embedded-Lösungen. Die Produktpalette umfasst MIPI-Kameramodule, programmierbare Multicore ARM/FPGA/Linux-Board-Kameras sowie Komponenten für Stereo-Vision- und 3D-Laserkamerasysteme. VC bietet auch maßgeschneiderte OEM-Lösungen und umfassende Softwareunterstützung, von kostenlosen Basis-Treibern bis hin zu leistungsstarken Bibliotheken und Software von Drittanbietern.

Es werden 10 von 79 Produkten angezeigt.

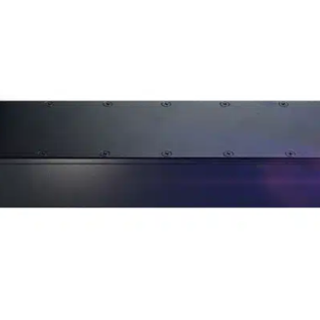

VC nano 3D-Z xxlarge 12-xx Laser Profiler

  • Sensor: Laser Class 2 Resolution X: 30 - 180 µm Resolution Y: 170 - 470 µm Working Distance: 410 - 1435 mm Horizontal M. Distance: 215 - 600mm
  • Pixel size [H in um x V in um]: 3.45 x 3.45
  • Frames per Second [FPS]: 174 FPS
  • Integration: Global Shutter
  • Digital I/O: ja
  • RAM: 512 MB DDR-SDRAM
  • Hersteller: Notavis
VC nano 3D-Z xxlarge 12-xx Laser Profiler

VC nano 3D-Z xxlarge 8-xx Laser Profiler

  • Sensor: Laser Class 2 Resolution X: 30 - 220 µm Resolution Y: 220 - 640 µm Working Distance: 465 - 1285 mm Horizontal M. Distance: 345 - 810mm
  • Pixel size [H in um x V in um]: 3.45 x 3.45
  • Frames per Second [FPS]: 174 FPS
  • Integration: Global Shutter
  • Digital I/O: ja
  • RAM: 512 MB DDR-SDRAM
  • Hersteller: Notavis
VC nano 3D-Z xxlarge 8-xx Laser Profiler

VC pro Z 0015 smart camera 1-1.8"CMOS Sensor

  • Sensor: • Interfaces: Gbit Ethernet, Encoder, 2 x external lighting, 4 inputs, 4 outputs, 1 trigger input, 1 flash trigger output, serial interface • Protective housing class IP67, M12 connectors • Optional: lens, integrated lighting, autofocus module
  • Pixel size [H in um x V in um]: 4,5 x 4,5
  • Pixel resolution: 1280 x 1200
  • Frames per Second [FPS]: 55 FPS
  • Integration: Global Shutter
  • Digital I/O: ja
  • RAM: 512 MB DDR-SDRAM
  • Hersteller: Notavis
VC pro Z 0015 smart camera 1-1.8"CMOS Sensor

VC pro Z 0010 smart camera 1/4"CMOS Sensor

  • Sensor: • Interfaces: Gbit Ethernet, Encoder, 2 x external lighting, 4 inputs, 4 outputs, 1 trigger input, 1 flash trigger output, serial interface • Protective housing class IP67, M12 connectors • Optional: lens, integrated lighting, autofocus module
  • Pixel size [H in um x V in um]: 4.5 x 4.5
  • Pixel resolution: 736 x 480
  • Frames per Second [FPS]: 134 FPS
  • Integration: Global Shutter
  • Digital I/O: ja
  • RAM: 512 MB DDR-SDRAM
  • Hersteller: Notavis
VC pro Z 0010 smart camera 1/4"CMOS Sensor

VC pro Z 0252 smart camera 1-1.8"CMOS Sensor

  • Sensor: • Interfaces: Gbit Ethernet, Encoder, 2 x external lighting, 4 inputs, 4 outputs, 1 trigger input, 1 flash trigger output, serial interface • Protective housing class IP67, M12 connectors • Optional: lens, integrated lighting, autofocus module
  • Pixel size [H in um x V in um]: 3,45 x 3,45
  • Pixel resolution: 2048 x 1536
  • Frames per Second [FPS]: 88 FPS
  • Integration: Global Shutter
  • Digital I/O: ja
  • RAM: 512 MB DDR-SDRAM
  • Hersteller: Notavis
VC pro Z 0252 smart camera 1-1.8"CMOS Sensor

VC pro Z 0273 smart camera 1-2.9"CMOS Sensor

  • Sensor: • Interfaces: Gbit Ethernet, Encoder, 2 x external lighting, 4 inputs, 4 outputs, 1 trigger input, 1 flash trigger output, serial interface • Protective housing class IP67, M12 connectors • Optional: lens, integrated lighting, autofocus module
  • Pixel size [H in um x V in um]: 3,45 x 3,45
  • Pixel resolution: 1440 x 1080
  • Frames per Second [FPS]: 174 FPS
  • Integration: Global Shutter
  • Digital I/O: ja
  • RAM: 512 MB DDR-SDRAM
  • Hersteller: Notavis
VC pro Z 0273 smart camera 1-2.9"CMOS Sensor

VC pro Z 0392 smart camera 1-2.3"CMOS Sensor

  • Sensor: • Interfaces: Gbit Ethernet, Encoder, 2 x external lighting, 4 inputs, 4 outputs, 1 trigger input, 1 flash trigger output, serial interface • Protective housing class IP67, M12 connectors • Optional: lens, integrated lighting, autofocus module
  • Pixel size [H in um x V in um]: 3,45 x 3,45
  • Pixel resolution: 1920 x 1200
  • Frames per Second [FPS]: 118 FPS
  • Integration: Global Shutter
  • Digital I/O: ja
  • RAM: 512 MB DDR-SDRAM
  • Hersteller: Notavis
VC pro Z 0392 smart camera 1-2.3"CMOS Sensor

VC nano Z 0011 smart camera 1/1.8"CMOS Sensor

  • Sensor: • Interfaces: 100 Mbit Ethernet, I/Os: 2 inputs, 4 outputs, 1 trigger input, 1 flash trigger output. Pin connections and cables are compatible with VC nano models.
  • Pixel size [H in um x V in um]: 5,3 x 5,3
  • Pixel resolution: 1280x 1024
  • Frames per Second [FPS]: 63 FPS
  • Integration: Global Shutter
  • Digital I/O: ja
  • RAM: 512 MB DDR-SDRAM
  • Hersteller: Notavis
VC nano Z 0011 smart camera 1/1.8"CMOS Sensor

VC nano Z 0010 smart camera 1/4"CMOS Sensor

  • Sensor: • Interfaces: 100 Mbit Ethernet, I/Os: 2 inputs, 4 outputs, 1 trigger input, 1 flash trigger output. Pin connections and cables are compatible with VC nano models.
  • Pixel size [H in um x V in um]: 4.5 x 4.5
  • Pixel resolution: 736 x 480
  • Frames per Second [FPS]: 134 FPS
  • Integration: Global Shutter
  • Digital I/O: ja
  • RAM: 512 MB DDR-SDRAM
  • Hersteller: Notavis
VC nano Z 0010 smart camera 1/4"CMOS Sensor

VC nano Z 0273 smart camera 1-2.9"CMOS Sensor

  • Sensor: • Interfaces: 100 Mbit Ethernet, I/Os: 2 inputs, 4 outputs, 1 trigger input, 1 flash trigger output. Pin connections and cables are compatible with VC nano models.
  • Pixel size [H in um x V in um]: 3,45 x 3,45
  • Pixel resolution: 1440x 1080
  • Frames per Second [FPS]: 174 FPS
  • Integration: Global Shutter
  • Digital I/O: ja
  • RAM: 512 MB DDR-SDRAM
  • Hersteller: Notavis
VC nano Z 0273 smart camera 1-2.9"CMOS Sensor
