Notavis

NOTAVIS ist Mitglied der Vision Components Group, zu der verschiedene Partner und Vertriebspartner gehören. Sie konzentrieren sich auf die Bereitstellung von industriellen Kameralösungen und haben einen starken Ruf für ihre innovative und effiziente Embedded-Vision-Technologie.

Vision Components ist seit 1996 ein Pionier im Bereich Embedded Vision und Erfinder der ersten intelligenten Kamera für den industriellen Einsatz. Vision Components entwickelt Maschinenvisions-Technologie mit Fokus auf Embedded-Lösungen. Die Produktpalette umfasst MIPI-Kameramodule, programmierbare Multicore ARM/FPGA/Linux-Board-Kameras sowie Komponenten für Stereo-Vision- und 3D-Laserkamerasysteme. VC bietet auch maßgeschneiderte OEM-Lösungen und umfassende Softwareunterstützung, von kostenlosen Basis-Treibern bis hin zu leistungsstarken Bibliotheken und Software von Drittanbietern.

Es werden 9 von 79 Produkten angezeigt.

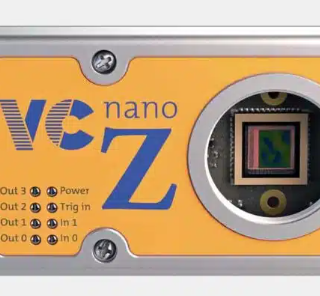

VC nano Z 0015 smart camera 1-1.8"CMOS Sensor

  • Sensor: • Interfaces: 100 Mbit Ethernet, I/Os: 2 inputs, 4 outputs, 1 trigger input, 1 flash trigger output. Pin connections and cables are compatible with VC nano models.
  • Pixel size [H in um x V in um]: 4,5 x 4,5
  • Pixel resolution: 1600x 1200
  • Frames per Second [FPS]: 55 FPS
  • Integration: Global Shutter
  • Digital I/O: ja
  • RAM: 512 MB DDR-SDRAM
  • Hersteller: Notavis
VC nano Z 0015 smart camera 1-1.8"CMOS Sensor

VC nano Z 0252 smart camera 1-1.8"CMOS Sensor

  • Sensor: • Interfaces: 100 Mbit Ethernet, I/Os: 2 inputs, 4 outputs, 1 trigger input, 1 flash trigger output. Pin connections and cables are compatible with VC nano models.
  • Pixel size [H in um x V in um]: 3,45 x 3,45
  • Pixel resolution: 2048x 1536
  • Frames per Second [FPS]: 88 FPS
  • Integration: Global Shutter
  • Digital I/O: ja
  • RAM: 512 MB DDR-SDRAM
  • Hersteller: Notavis
VC nano Z 0252 smart camera 1-1.8"CMOS Sensor

VC nano Z 0392 smart camera 1-2.3"CMOS Sensor

  • Sensor: • Interfaces: 100 Mbit Ethernet, I/Os: 2 inputs, 4 outputs, 1 trigger input, 1 flash trigger output. Pin connections and cables are compatible with VC nano models.
  • Pixel size [H in um x V in um]: 3,45 x 3,45
  • Pixel resolution: 1920x 1200
  • Frames per Second [FPS]: 118 FPS
  • Integration: Global Shutter
  • Digital I/O: ja
  • RAM: 512 MB DDR-SDRAM
  • Hersteller: Notavis
VC nano Z 0392 smart camera 1-2.3"CMOS Sensor

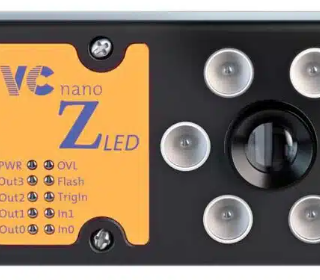

VC nano Z-LED 0010 camera 1/4"CMOS Sensor

  • Sensor: • Interfaces: 100 Mbit Ethernet, 8 I/Os: 2 inputs, 4 outputs, 1 trigger input, 1 flash trigger output. Standard housing with integrated ring lighting (6 LEDs).
  • Pixel size [H in um x V in um]: 4.5 x 4.5
  • Pixel resolution: 736 x 480
  • Frames per Second [FPS]: 134 FPS
  • Integration: Global Shutter
  • Digital I/O: ja
  • RAM: 512 MB DDR-SDRAM
  • Hersteller: Notavis
VC nano Z-LED 0010 camera 1/4"CMOS Sensor

VC nano Z-LED 0011 camera 1/1.8"CMOS Sensor

  • Sensor: • Interfaces: 100 Mbit Ethernet, 8 I/Os: 2 inputs, 4 outputs, 1 trigger input, 1 flash trigger output. Standard housing with integrated ring lighting (6 LEDs).
  • Pixel size [H in um x V in um]: 5,3 x 5,3
  • Pixel resolution: 1280 x 1024
  • Frames per Second [FPS]: 63 FPS
  • Integration: Global Shutter
  • Digital I/O: ja
  • RAM: 512 MB DDR-SDRAM
  • Hersteller: Notavis
VC nano Z-LED 0011 camera 1/1.8"CMOS Sensor

VC nano Z-LED 0015 camera 1/1.8"CMOS Sensor

  • Sensor: • Interfaces: 100 Mbit Ethernet, 8 I/Os: 2 inputs, 4 outputs, 1 trigger input, 1 flash trigger output. Standard housing with integrated ring lighting (6 LEDs).
  • Pixel size [H in um x V in um]: 4,5 x 4,5
  • Pixel resolution: 1600 x 1200
  • Frames per Second [FPS]: 55 FPS
  • Integration: Global Shutter
  • Digital I/O: ja
  • RAM: 512 MB DDR-SDRAM
  • Hersteller: Notavis
VC nano Z-LED 0015 camera 1/1.8"CMOS Sensor

VC nano Z-LED 0252 camera 1/1.8"CMOS Sensor

  • Sensor: • Interfaces: 100 Mbit Ethernet, 8 I/Os: 2 inputs, 4 outputs, 1 trigger input, 1 flash trigger output. Standard housing with integrated ring lighting (6 LEDs).
  • Pixel size [H in um x V in um]: 3,45 x 3,55
  • Pixel resolution: 2048 x 1536
  • Frames per Second [FPS]: 88 FPS
  • Integration: Global Shutter
  • Digital I/O: ja
  • RAM: 512 MB DDR-SDRAM
  • Hersteller: Notavis
VC nano Z-LED 0252 camera 1/1.8"CMOS Sensor

VC nano Z-LED 0273 camera 1/2.9"CMOS Sensor

  • Sensor: • Interfaces: 100 Mbit Ethernet, 8 I/Os: 2 inputs, 4 outputs, 1 trigger input, 1 flash trigger output. Standard housing with integrated ring lighting (6 LEDs).
  • Pixel size [H in um x V in um]: 3,45 x 3,55
  • Pixel resolution: 1440 x 1080
  • Frames per Second [FPS]: 174 FPS
  • Integration: Global Shutter
  • Digital I/O: ja
  • RAM: 512 MB DDR-SDRAM
  • Hersteller: Notavis
VC nano Z-LED 0273 camera 1/2.9"CMOS Sensor

VC nano Z-LED 0392 camera 1/2.3"CMOS Sensor

  • Sensor: • Interfaces: 100 Mbit Ethernet, 8 I/Os: 2 inputs, 4 outputs, 1 trigger input, 1 flash trigger output. Standard housing with integrated ring lighting (6 LEDs).
  • Pixel size [H in um x V in um]: 3,45 x 3,45
  • Pixel resolution: 1920 x 1200
  • Frames per Second [FPS]: 118 FPS
  • Integration: Global Shutter
  • Digital I/O: ja
  • RAM: 512 MB DDR-SDRAM
  • Hersteller: Notavis
VC nano Z-LED 0392 camera 1/2.3"CMOS Sensor
