12 years stationary use, front terminals for rack mounting

Closed construction
For installation in battery rack with front cabling
Low maintenance
Valve regulated (low pressure)
Leakproof
Operation possible in any position without loss of capacity, with the exception of continuous headstand operation
Electrolyte bound in fiberglass mat
Gas recombination cycle
Small self-discharge
Long storage time
Easily recyclable
High recovery ability after deep discharge
No restriction on air transport (IATA)

  • Charging voltage:
    Continuous charging: 2,275V/cell (25°C)
  • Life expectancy:
    Floating charge:
    12+ years (Eurobat) 80% of C20,
    1.8 V / cell @ 20°C
  • Temperature range:
    Allowed: -15°C...+45°C
    Recommended: -15°C...+30°C



  • Charge only with chargers designed for this purpose.
  • Batteries are recycled. Please return to the point of sale.
  • Accessories such as chargers, battery connectors and battery racks on request.

There are 8 of 8 products shown.

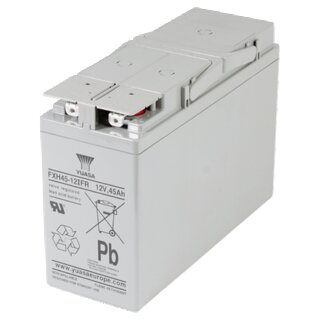

FXH45-12IFR

  • Description: FXH45-12IFR
  • Length [mm]: 278 mm
  • Width [mm]: 103 mm
  • Height [mm]: 197 mm
  • Voltage [V]: 12 V
  • Capacity [Ah]: 44.6 Ah
  • Manufacturer: YUASA
FXH45-12IFR

FXH90-12IFR

  • Description: FXH90-12IFR
  • Length [mm]: 395 mm
  • Width [mm]: 105 mm
  • Height [mm]: 255 mm
  • Voltage [V]: 12 V
  • Capacity [Ah]: 89.8 Ah
  • Manufacturer: YUASA
FXH90-12IFR

FXH190-12IFR

  • Description: FXH190-12IFR
  • Length [mm]: 604 mm
  • Width [mm]: 123 mm
  • Height [mm]: 320 mm
  • Voltage [V]: 12 V
  • Capacity [Ah]: 200 Ah
  • Manufacturer: YUASA
FXH190-12IFR

FXH200-12IFR

  • Description: FXH200-12IFR
  • Length [mm]: 520 mm
  • Width [mm]: 243 mm
  • Height [mm]: 203 mm
  • Voltage [V]: 12 V
  • Capacity [Ah]: 229 Ah
  • Manufacturer: YUASA
FXH200-12IFR

FXH185-12IFR

  • Description: FXH185-12IFR
  • Length [mm]: 556 mm
  • Width [mm]: 125 mm
  • Height [mm]: 317 mm
  • Voltage [V]: 12 V
  • Capacity [Ah]: 187 Ah
  • Manufacturer: YUASA
FXH185-12IFR

FXH155-12IFR

  • Description: FXH155-12IFR
  • Length [mm]: 415 mm
  • Width [mm]: 174 mm
  • Height [mm]: 258 mm
  • Voltage [V]: 12 V
  • Capacity [Ah]: 155 Ah
  • Manufacturer: YUASA
FXH155-12IFR

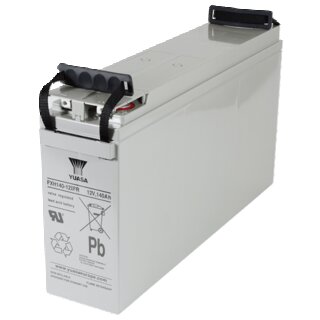

FXH140-12IFR

  • Description: FXH140-12IFR
  • Length [mm]: 556 mm
  • Width [mm]: 123 mm
  • Height [mm]: 295 mm
  • Voltage [V]: 12 V
  • Capacity [Ah]: 154 Ah
  • Manufacturer: YUASA
FXH140-12IFR

FXH100-12IFR

  • Description: FXH100-12IFR
  • Length [mm]: 508 mm
  • Width [mm]: 106 mm
  • Height [mm]: 236 mm
  • Voltage [V]: 12 V
  • Capacity [Ah]: 98.4 Ah
  • Manufacturer: YUASA
FXH100-12IFR
