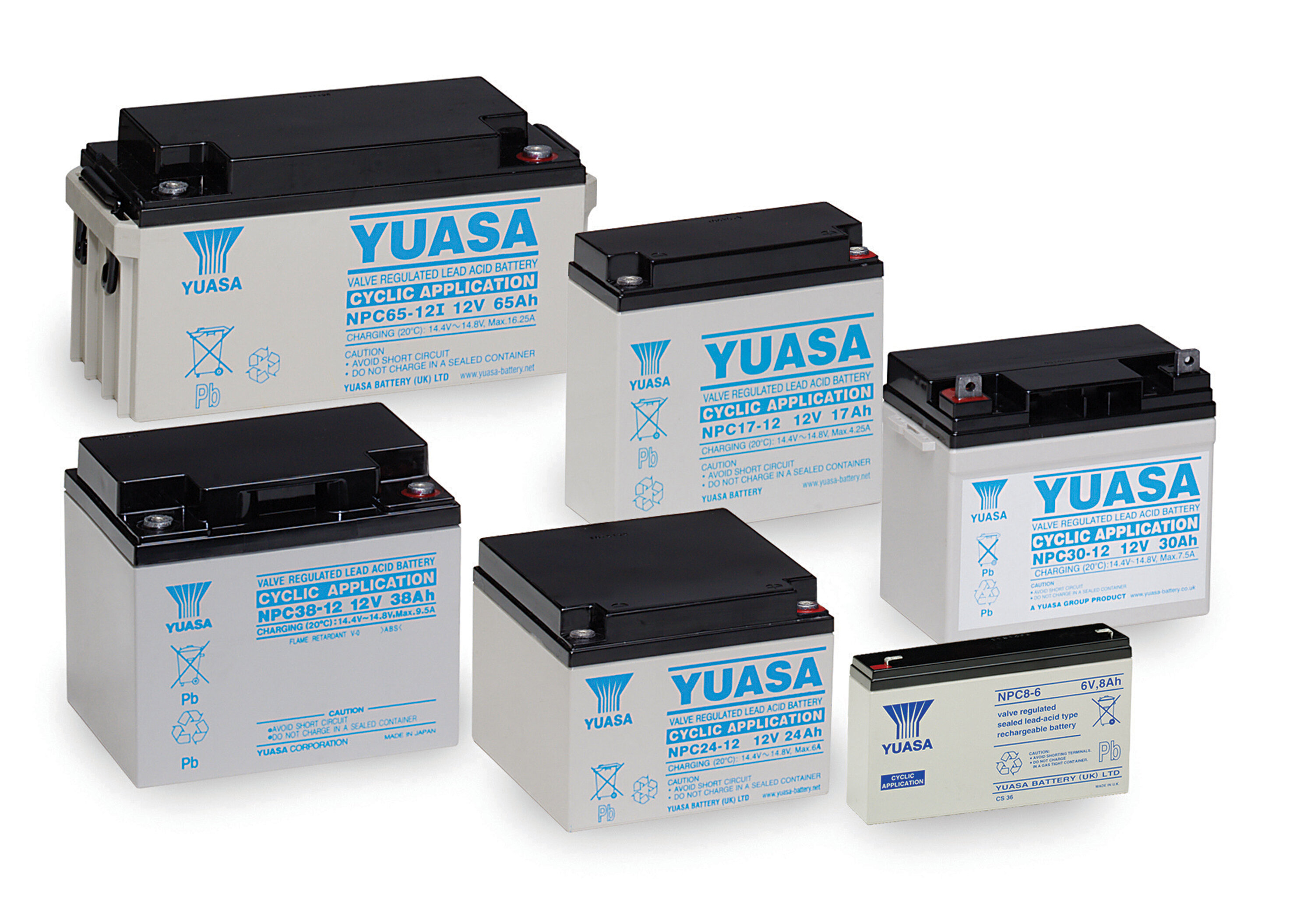

Cyclic applications
Especially for use in all types of electric vehicles
Up to 1200 charge-discharge cycles at 30% depth of discharge each, or 600 cycles at 50% depth of discharge each.
Excellent high current characteristics, up to 3C(A)
Closed construction
Low maintenance
Valve regulated (low pressure)
Leakproof
Operation possible in any position without loss of capacity, with the exception of continuous upside-down operation.
Electrolyte bound in fiberglass mat
Excellent fast charging and discharging properties
Small self-discharge
Long storage time
Easily recyclable
High recovery ability after deep discharge.
No restriction on air transport (IATA)
UL listed, file number: MH12970
Dimensions correspond to NP/NPL series
- Charging voltage:
Cycle charging:
2.45V/cell (20°C) for 9 hours max 20 hours!
Charging current must be limited to 0.25C(A) = 2.5 A for a 10 Ah battery - Temperature range:
Application: -15°C...+50°C
Storage: -20°C...+50°C
- Charge only with chargers designed for this purpose.
- Batteries are recycled. Please return to the point of sale.
- For chargers, see the Chargers chapter.
- For accessories such as battery connectors and battery racks, see the Accessories for lead batteries chapter.
