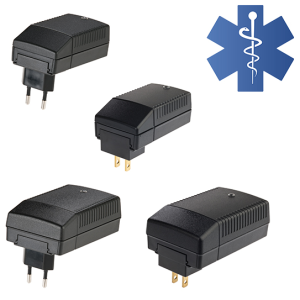

MPP-series, worldwide, EN60601 medical
This new platform in MPP housings enables a wide range of devices in the medical sector to be operated. The devices of protection class II are unique - they combine a wide range input (90-264VAC) with a device leakage current of ≤ 10μA. Thanks to patented, interchangeable primary plugs for Europe, USA/Japan, Australia or UK, they can be adapted to all standard sockets in the country and allow maximum flexibility when traveling around the world. For more “exotic” sockets, the devices can be equipped with the IEC adapter, which enables the use of regionally available IEC power cables. This adapter also allows conversion to a table power supply. The output line can be fitted with the desired plug-in attachment as required.
- Input voltage: 100-240 VAC ±10% / 50-60 Hz
- High voltage resistant: 4 kV
- Leakage current: ≤ 10μA (IEC601/BF;CF)
- Temperature range:
Operation: 0°C...+40°C
Storage: -40°C...+70°C - Idle current consumption: ≤ 0.5 W
- Output cable: 2 m with reversible universal coupling
- Not included in the delivery:
For the mains input plug adapter, see the power supply accessories chapter
For secondary plug attachments, see the power supply accessories chapter
