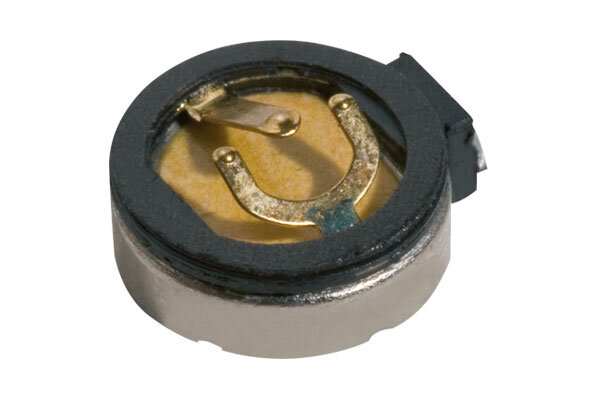

Coin type

Overview of the advantages of Coin Type Vibration Motors:

  • Flat and space saving solution
  • Diameter Ø8mm and Ø12mm
  • Thickness between 2mm and 3,8mm
  • Rated Voltage 2V and 3V
  • Vibrating force in X-Y-direction
  • Available with wire, connector, solder pads or spring terminal
  • Other versions on request
  • Automotive solutions for haptic feedback on request

There are 10 of 11 products shown.

BVM0820-X8-03U-Z

  • Diameter [mm]: 8 mm
  • Height [mm]: 2.1 mm
  • Rated Voltage [V]: 3 V
  • Max. Rated Speed [rpm]: 10,000 rpm
  • Max. Rated Current [mA]: 85 mA
  • Operating Temp [°C]: -30 °C ... 70 °C
  • Manufacturer: Baolong
BVM0820-X8-03U-Z

BVM0720-X8-0SU

  • Diameter [mm]: 7 mm
  • Height [mm]: 2 mm
  • Rated Voltage [V]: 3 V
  • Max. Rated Speed [rpm]: 8,000 rpm
  • Max. Rated Current [mA]: 85 mA
  • Operating Temp [°C]: -30 °C ... 70 °C
  • Manufacturer: Baolong
BVM0720-X8-0SU

BVM0834-X25-0TU-MF

  • Diameter [mm]: 8 mm
  • Height [mm]: 3.4 mm
  • Rated Voltage [V]: 3 V
  • Max. Rated Speed [rpm]: 13,500 rpm
  • Max. Rated Current [mA]: 85 mA
  • Operating Temp [°C]: -30 °C ... 70 °C
  • Manufacturer: Baolong
BVM0834-X25-0TU-MF

BVM0827-FP2-1T02U-1

  • Diameter [mm]: 8 mm
  • Height [mm]: 2.7 mm
  • Rated Voltage [V]: 1.3 V
  • Max. Rated Speed [rpm]: 6,500 rpm
  • Max. Rated Current [mA]: 37 mA
  • Operating Temp [°C]: -30 °C ... 70 °C
  • Manufacturer: Baolong
BVM0827-FP2-1T02U-1

BVM1020-X6-1RU

  • Diameter [mm]: 10 mm
  • Height [mm]: 2.1 mm
  • Rated Voltage [V]: 3 V
  • Max. Rated Speed [rpm]: 13,500 rpm
  • Max. Rated Current [mA]: 85 mA
  • Operating Temp [°C]: -30 °C ... 70 °C
  • Manufacturer: Baolong
BVM1020-X6-1RU

BVM0820R-X7-1S05U

  • Diameter [mm]: 8 mm
  • Height [mm]: 2.1 mm
  • Rated Voltage [V]: 3 V
  • Max. Rated Speed [rpm]: 9,000 rpm
  • Max. Rated Current [mA]: 35 mA
  • Operating Temp [°C]: -30 °C ... 70 °C
BVM0820R-X7-1S05U

BVM0827-X10-1T03U

  • Diameter [mm]: 8 mm
  • Height [mm]: 2.7 mm
  • Rated Voltage [V]: 3 V
  • Max. Rated Speed [rpm]: 13,500 rpm
  • Max. Rated Current [mA]: 85 mA
  • Operating Temp [°C]: -30 °C ... 70 °C
  • Manufacturer: Baolong
BVM0827-X10-1T03U

BVM1034-C4701X50-1TU

  • Diameter [mm]: 10 mm
  • Height [mm]: 3.4 mm
  • Rated Voltage [V]: 3 V
  • Max. Rated Speed [rpm]: 11,500 rpm
  • Max. Rated Current [mA]: 85 mA
  • Operating Temp [°C]: -30 °C ... 70 °C
  • Manufacturer: Baolong
BVM1034-C4701X50-1TU

BVM1018-X100-1TU

  • Diameter [mm]: 10 mm
  • Height [mm]: 1.8 mm
  • Rated Voltage [V]: 3 V
  • Max. Rated Speed [rpm]: 10,000 rpm
  • Max. Rated Current [mA]: 85 mA
  • Operating Temp [°C]: -30 °C ... 70 °C
  • Manufacturer: Baolong
BVM1018-X100-1TU

BVM0625H-X10-U

  • Diameter [mm]: 6 mm
  • Height [mm]: 2.5 mm
  • Rated Voltage [V]: 3 V
  • Max. Rated Speed [rpm]: 10,000 rpm
  • Max. Rated Current [mA]: 100 mA
  • Operating Temp [°C]: -30 °C ... 70 °C
  • Manufacturer: Baolong
BVM0625H-X10-U
Diameter [mm]

Height [mm]

Rated Voltage [V]

Max. Rated Speed [rpm]

Max. Rated Current [mA]

Operating Temp [°C]
