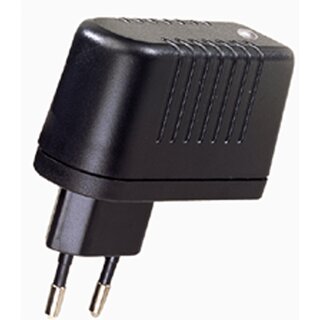

PP series, worldwide, EN60601 medical

Compared to conventional devices, switching power supplies are around 50% lighter, suitable for worldwide use. Thanks to the wide-range input, the devices can be operated on all standard sockets worldwide. Thanks to the low device leakage current of ≤ 10µA, which is unique for devices in protection class II, they are suitable for medical applications. The output line can be fitted with the desired plug-in attachment as required.

  • Input voltage: 100-240 VAC ±10% / 50-60 Hz
  • High voltage resistant: 4 kV
  • Temperature range:
    Operation: 0°C...+40°C
    Storage: -40°C...+70°C
  • Device leakage current: ≤ 10µA
  • Standard: EN60601-1
  • Output cable: 2 m with reversible plug-in coupling for plug-in attachments

There are 3 of 3 products shown.

3337-FW7333SM/05

  • Description: NSGRW1P5VDCs/1.3A
  • Length [mm]: 77 mm
  • Width [mm]: 30 mm
  • Height [mm]: 45 mm
  • Voltage [V]: 5 VDC
  • Current [A]: 1.3 A
  • Manufacturer: FRIWO
3337-FW7333SM/05

3338-FW7333SM/06

  • Description: NSGRW1P6VDCs/1.15A
  • Length [mm]: 77 mm
  • Width [mm]: 30 mm
  • Height [mm]: 45 mm
  • Voltage [V]: 6 VDC
  • Current [A]: 1.15 A
  • Manufacturer: FRIWO
3338-FW7333SM/06

3344-FW7333SM/24

  • Description: NSGRW1P24VDCs/0.33A
  • Length [mm]: 77 mm
  • Width [mm]: 30 mm
  • Height [mm]: 45 mm
  • Voltage [V]: 24 VDC
  • Current [A]: 0.33 A
  • Manufacturer: FRIWO
3344-FW7333SM/24
