LNA

Nisshinbo Micro Devices offers Low Noise Amplifiers (LNAs) ideal for various communication applications that frequency range from several 10 MHz to 6 GHz. Their LNAs have advantages such as high gain, low noise figure and low distortion. They also provide Front-End Modules (FEMs) that integrate SAW filter and LNA for GNSS applications.

There are 10 of 62 products shown.

NJG1155UX2

  • Package (LNA): EPFFP6
  • Frequency Range [MHz]: 1575
  • Operating Voltage [V]: 1.8 V ... 2.8 V
  • Operating Current [mA]: 3.1 mA
  • Gain typ [dB]: 19/18,5
  • NF typ [dB]: 0,75/0,75
  • P-1dB typ [dBm]: -12,5/-16
  • IIP3 typ [dBm]: -1,5/-5
  • Manufacturer: Nisshinbo
NJG1155UX2

NT1192FAAE1S

  • Package (LNA): EPFFP6
  • Operating Voltage [V]: 1.8 V ... 2.8 V
  • Operating Current [mA]: 3.5 mA
  • Gain typ [dB]: 20/19,5; 20/19,5; 19.5/19
  • NF typ [dB]: 0,7/0,75
  • P-1dB typ [dBm]: -13,5/-17; -13/-17; -13,5/-16
  • IIP3 typ [dBm]: -2/-5,5;-2/-5,5;-2/-5
  • Manufacturer: Nisshinbo
NT1192FAAE1S

NJG1150UA2

  • Package (LNA): EPFFP6
  • Frequency Range [MHz]: 1575
  • Operating Voltage [V]: 1.8 V ... 2.8 V
  • Operating Current [mA]: 4.2 mA
  • Gain typ [dB]: 16/16
  • NF typ [dB]: 0,6/0,6
  • P-1dB typ [dBm]: -7/-9
  • IIP3 typ [dBm]: 1/-1
  • Manufacturer: Nisshinbo
NJG1150UA2

NJG1144KA1

  • Package (LNA): FLP6
  • Frequency Range [MHz]: 1575
  • Operating Voltage [V]: 1.8 V ... 2.85 V
  • Operating Current [mA]: 1.8 mA
  • Gain typ [dB]: 21/18
  • NF typ [dB]: 0,65/0,85
  • P-1dB typ [dBm]: -16,5/-18,5
  • IIP3 typ [dBm]: -2/-6
  • Manufacturer: Nisshinbo
NJG1144KA1

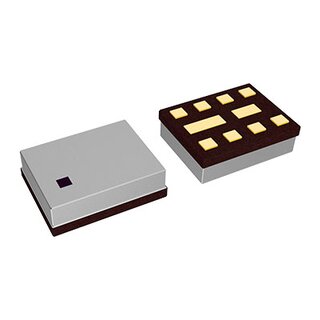

NJG1159PHH

  • Package (LNA): HFFP10
  • Operating Voltage [V]: 1.8 V ... 2.8 V
  • Operating Current [mA]: 3 mA
  • Gain typ [dB]: 16/15,5; 16,5/16; 16/15,5
  • NF typ [dB]: 1,50/1,55;1,65/1,70;1,70/1,75
  • P-1dB typ [dBm]: -10/-13
  • IIP3 typ [dBm]: -2/-5
  • Manufacturer: Nisshinbo
NJG1159PHH

NJG1187AKGC-A

  • Operating Voltage [V]: 3.3 V ... 3.3 V
  • Operating Current [mA]: 8 mA
  • Gain typ [dB]: 34; 37; 36
  • NF typ [dB]: 0,6;0,65;0,65
  • P-1dB typ [dBm]: +14(out); +13(out); +13(out)
  • IIP3 typ [dBm]: +16;+19;+18
  • Manufacturer: Nisshinbo
NJG1187AKGC-A

NJG1187KG1

  • Operating Voltage [V]: 3.3 V ... 3.3 V
  • Operating Current [mA]: 8 mA
  • Gain typ [dB]: 34; 37; 36
  • NF typ [dB]: 0,6;0,65;0,65
  • P-1dB typ [dBm]: +13(out); +12(out); +12(out)
  • IIP3 typ [dBm]: +17;+19/+20;+20
  • Manufacturer: Nisshinbo
NJG1187KG1

NJG1108HA8

  • Package (LNA): USB6
  • Frequency Range [MHz]: 1575
  • Operating Voltage [V]: 2.7 V ... 2.7 V
  • Operating Current [mA]: 2 mA
  • Gain typ [dB]: 19
  • NF typ [dB]: 1
  • P-1dB typ [dBm]: -15
  • Manufacturer: Nisshinbo
NJG1108HA8

NJG1107KB2

  • Package (LNA): FLP6
  • Operating Voltage [V]: 2.7 V ... 2.7 V
  • Operating Current [mA]: 3 mA
  • Gain typ [dB]: 17; 15; 14
  • NF typ [dB]: 1,2; 1,2; 1,3
  • IIP3 typ [dBm]: -4;-2;-1,5
  • Manufacturer: Nisshinbo
NJG1107KB2

NJG1159PHH-A

  • Package (LNA): HFFP10
  • Operating Voltage [V]: 2.8 V ... 2.8 V
  • Operating Current [mA]: 3.7 mA
  • Gain typ [dB]: 16; 16,5; 16
  • NF typ [dB]: 1,5;1,65;1,7
  • P-1dB typ [dBm]: -10
  • Manufacturer: Nisshinbo
NJG1159PHH-A
