Ultrasonic Sensors

Frequencies above the human hearing threshold of approx. 20 kHz are referred to as ultrasound. Ultrasonic technology can be used for continuous, non-contact and maintenance-free distance measurement as well as for level measurement of liquids, pastes, slurries and powdery to lumpy bulk materials and for flow measurement.

There are 10 of 56 products shown.

TC0120-006

  • Type: APA
  • Frequency [kHz]: 48 kHz
  • Sensitivity: 558~850μS
  • Decay time [mS]: ≤2.20
  • Directivity [X° / Y°]: X 80° Y 80°
  • Size [Фmm x H mm]: Ф 15.5 H 9.0
  • Automotive: no
  • Manufacturer: Audiowell
TC0120-006

TC0223-000

  • Type: AK2
  • Frequency [kHz]: 55.5 kHz
  • Sensitivity: ≥36
  • Decay time [mS]: ≤2.20
  • Directivity [X° / Y°]: X 90° Y45°
  • Size [Фmm x H mm]: Ф 15.5 H 9.0
  • Automotive: no
  • Manufacturer: Audiowell
TC0223-000

TC0096-037

  • Type: UPA
  • Frequency [kHz]: 48 kHz
  • Sensitivity: 3.0Vp-p
  • Decay time [mS]: ≤1.80
  • Directivity [X° / Y°]: X 100° Y 50°
  • Size [Фmm x H mm]: Ф14.0 H 9.0
  • Automotive: no
  • Manufacturer: Audiowell
TC0096-037

TO0101-012 & TO0104-012

  • Type: Open-type sensor transmitter and reciever
  • Frequency [kHz]: 40 kHz
  • Sound Pressure Level: 117~122
  • Sensitivity: -60~-55
  • Directivity [X° / Y°]: 90°
  • Size [Фmm x H mm]: Ф10 .0 H 7.2
  • Automotive: yes
  • Manufacturer: Audiowell
TO0101-012 & TO0104-012

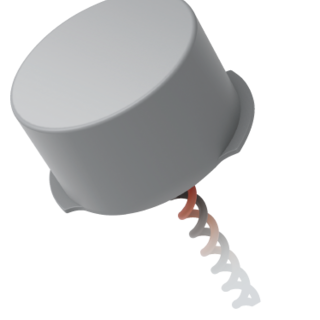

TC0120-001

  • Type: UPA
  • Frequency [kHz]: 48 kHz
  • Sensitivity: 500~800μS
  • Decay time [mS]: ≤2.20
  • Directivity [X° / Y°]: X 65° Y 65°
  • Size [Фmm x H mm]: Ф15.5 H 9.0
  • Automotive: no
  • Manufacturer: Audiowell
TC0120-001

TO0139-000 & TO0140-000

  • Type: Open-type sensor transmitter and reciever
  • Frequency [kHz]: 40 kHz
  • Sound Pressure Level: ≥117
  • Sensitivity: ≥-67
  • Directivity [X° / Y°]: 90°
  • Size [Фmm x H mm]: Ф8.0 H 6.0
  • Automotive: no
  • Manufacturer: Audiowell
TO0139-000 & TO0140-000

TO0101-004 & TO0104-004

  • Type: Open-type sensor transmitter and reciever
  • Frequency [kHz]: 40 kHz
  • Sound Pressure Level: 117~122
  • Sensitivity: -60~-55
  • Directivity [X° / Y°]: 90°
  • Size [Фmm x H mm]: Ф10 .0 H 7.2
  • Automotive: yes
  • Manufacturer: Audiowell
TO0101-004 & TO0104-004

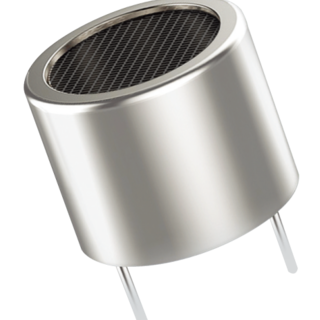

TO0002-000 & TO0001-000

  • Type: Open-type sensor transmitter and reciever
  • Frequency [kHz]: 40 kHz
  • Sound Pressure Level: ≥115
  • Sensitivity: ≥-60
  • Directivity [X° / Y°]: 80°
  • Size [Фmm x H mm]: Ф16 .0 H 12.2
  • Automotive: no
  • Manufacturer: Audiowell
TO0002-000 & TO0001-000

TO0119-001 & TO0120-001

  • Type: Open-type sensor transmitter and reciever
  • Frequency [kHz]: 40 kHz
  • Sound Pressure Level: ≥113
  • Sensitivity: ≥-63
  • Directivity [X° / Y°]: 80°
  • Size [Фmm x H mm]: Ф10.0 H 7.2
  • Automotive: no
  • Manufacturer: Audiowell
TO0119-001 & TO0120-001

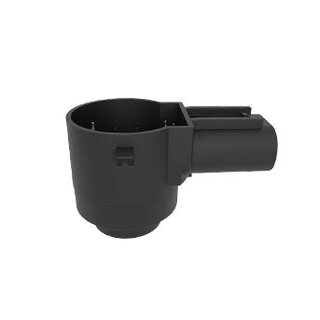

TK0158-000

  • Type: Automotive intelligent sensor
  • Frequency [kHz]: 55.5 kHz
  • Ring time [ms]: ≤1.50
  • Directivity [X° / Y°]: X 90° Y 45°
  • Automotive: no
  • Manufacturer: Audiowell
TK0158-000
