Ceramic Resonators / Filters

Ceramic Resonators are positioned between quartz crystal oscillators and LC/RC oscillators regarding their accuracy, but they are considerably smaller, require no adjustments, have improved start-up times, and are very inexpensive. Their oscillation frequency depends on the mechanical resonance linked with their piezoelectric crystalline structure.

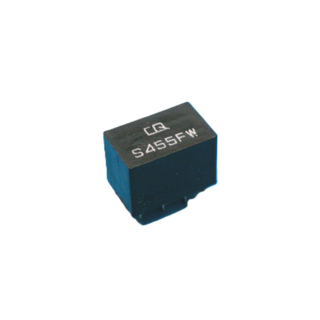

Ceramic Filters get their basic frequency selectivity from the mechanical vibration resulted from the piezoelectric effect. Nearly all low and high-end AM/FM commercial radios use ceramic filters. They are also widely found in cordless telephones, cellular, computers, GPS, mp3 players, DVD recorders, TV, and many others.

  • Ceramic resonator 190kHz~60 MHz (smallest size 2.5×2.0 mm, temperature range up to -40°C~+125°C)
  • Ceramic filter: e.g. 455 kHz / 10.7MHz / 27 MHz /45 MHz
  • Discriminator and Traps
  • Printed pass band filter

Please count on our sales, technical and logistics support in selecting the right filter or resonator for your application.

There are 10 of 15 products shown.

LTCV10.7 10,7 MHZ SMD Filter

  • Length [mm]: 7 mm
  • Width [mm]: 3 mm
  • Height [mm]: 1.5 mm
  • Frequency: 10.7 MHz ... 10.7 MHz
  • Manufacturer: Chequers
LTCV10.7 10,7 MHZ SMD Filter

LTCS10. 10.7MHz SMD Filter

  • Length [mm]: 3.45 mm
  • Width [mm]: 3.1 mm
  • Height [mm]: 1.4 mm
  • Frequency: 10.7 MHz ... 10.7 MHz
  • Manufacturer: Chequers
LTCS10. 10.7MHz SMD Filter

LTC5.5MCB 5.5MHz SMD Filter

  • Length [mm]: 8.5 mm
  • Width [mm]: 3.8 mm
  • Height [mm]: 1.8 mm
  • Frequency: 5.5 MHz ... 5.5 MHz
  • Manufacturer: Chequers
LTC5.5MCB 5.5MHz SMD Filter

ZTACE

  • Length [mm]: 3.2 mm
  • Width [mm]: 1.3 mm
  • Height [mm]: 1 mm
  • Frequency: 8 MHz ... 12 MHz
  • Manufacturer: Chequers
ZTACE

ZTACP

  • Length [mm]: 6 mm
  • Width [mm]: 3 mm
  • Height [mm]: 1.5 mm
  • Frequency: 2 MHz ... 8 MHz
  • Manufacturer: Chequers
ZTACP

ZTACR

  • Length [mm]: 4.5 mm
  • Width [mm]: 2 mm
  • Height [mm]: 1.2 mm
  • Frequency: 4 MHz ... 8 MHz
  • Manufacturer: Chequers
ZTACR

ZTACS

  • Length [mm]: 4.7 mm
  • Width [mm]: 4.1 mm
  • Height [mm]: 1.9 mm
  • Frequency: 6 MHz ... 60 MHz
  • Manufacturer: Chequers
ZTACS

ZTACV

  • Length [mm]: 3.7 mm
  • Width [mm]: 3.1 mm
  • Height [mm]: 1.7 mm
  • Frequency: 8 MHz ... 60 MHz
  • Manufacturer: Chequers
ZTACV

ZTACW

  • Length [mm]: 2.5 mm
  • Width [mm]: 2 mm
  • Height [mm]: 1.2 mm
  • Frequency: 20 MHz ... 60 MHz
  • Manufacturer: Chequers
ZTACW

ZTTCE

  • Length [mm]: 3.2 mm
  • Width [mm]: 1.3 mm
  • Height [mm]: 1 mm
  • Frequency: 8 MHz ... 12 MHz
  • Manufacturer: Chequers
ZTTCE
