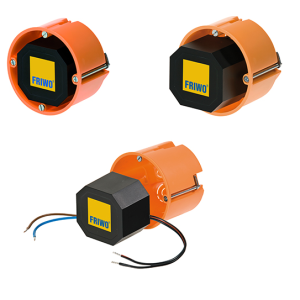

Flush mount housing

  • Applications:
    Security technology
    Water fittings
    Roller shutter control
    Door opener
    LED applications
  • Safety regulations:
    Standards Meets Class II SELV for the following applications: EN 60950 / IEC 60950,UL 60950, VDE, CE mark
  • Characteristics:
    Universal input 100 to 240 V AC
    Voltage regulated, current limited
    Minimum standby power loss ≤ 0.3 watts
    High efficiency 75% typical at full load
    Permanent short-circuit proof
    compact design
    IP 64 protection class
  • Lifespan:
    MTBF 200,000 hours at maximum load and ambient temperature of 25°C (according to MIL-HDBK-217)
  • EMC Complies:
    EN 55011, 55014, EN 55022/B, EN 55024, FCC 41 Part 15, EN 61000-3-2, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4 -5, EN 61000-4-6, EN 1000-4-11
