Hybrid

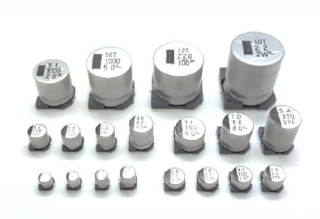

Hybrid capacitors from Panasonic and Suncon

Discover our wide range of high-quality hybrid capacitors from leading manufacturers.
Panasonic and Suncon offer long-life SMD and THT types with excellent temperature behavior - up to 10,000 hours at 105°C or 4,000 hours at 150°C.
For maximum reliability, components from 6.3mm diameter with vibration-proof mounts (up to 30G) are available.
All products are AEC-Q200 qualified, are manufactured on IATF16949-certified lines and are also available in customized versions on request.
Rely on quality for demanding applications.

There are 10 of 477 products shown.

80HEH12MT

  • Height [mm]: 9.5 mm
  • Diameter [mm]: 10 mm
  • Rated Voltage [V]: 80 V
  • Capacitance [µF]: 12 µF
  • Endurance [h]: 10,000 h
  • Rated Ripple Current [mArms/100kHz]: 1,600 mArms/100kHz
  • Temp max [℃]: 105 °C
  • Manufacturer: Suncon
80HEH12MT

80HEH18MT

  • Height [mm]: 11.5 mm
  • Diameter [mm]: 10 mm
  • Rated Voltage [V]: 80 V
  • Capacitance [µF]: 18 µF
  • Endurance [h]: 10,000 h
  • Rated Ripple Current [mArms/100kHz]: 1,830 mArms/100kHz
  • Temp max [℃]: 105 °C
  • Manufacturer: Suncon
80HEH18MT

80HEH15MT

  • Height [mm]: 9.5 mm
  • Diameter [mm]: 10 mm
  • Rated Voltage [V]: 80 V
  • Capacitance [µF]: 15 µF
  • Endurance [h]: 10,000 h
  • Rated Ripple Current [mArms/100kHz]: 1,600 mArms/100kHz
  • Temp max [℃]: 105 °C
  • Manufacturer: Suncon
80HEH15MT

100HEH12MT

  • Height [mm]: 9.5 mm
  • Diameter [mm]: 10 mm
  • Rated Voltage [V]: 100 V
  • Capacitance [µF]: 12 µF
  • Endurance [h]: 10,000 h
  • Rated Ripple Current [mArms/100kHz]: 1,450 mArms/100kHz
  • Temp max [℃]: 105 °C
  • Manufacturer: Suncon
100HEH12MT

100HEH10MT

  • Height [mm]: 9.5 mm
  • Diameter [mm]: 10 mm
  • Rated Voltage [V]: 100 V
  • Capacitance [µF]: 10 µF
  • Endurance [h]: 10,000 h
  • Rated Ripple Current [mArms/100kHz]: 1,450 mArms/100kHz
  • Temp max [℃]: 105 °C
  • Manufacturer: Suncon
100HEH10MT

16HEHZ120MT

  • Height [mm]: 7.2 mm
  • Diameter [mm]: 6.3 mm
  • Rated Voltage [V]: 16 V
  • Capacitance [µF]: 120 µF
  • Endurance [h]: 2,000 h
  • Rated Ripple Current [mArms/100kHz]: 2,070 mArms/100kHz
  • Temp max [℃]: 105 °C
  • Manufacturer: Suncon
16HEHZ120MT

100HEH15MT

  • Height [mm]: 11.5 mm
  • Diameter [mm]: 10 mm
  • Rated Voltage [V]: 100 V
  • Capacitance [µF]: 15 µF
  • Endurance [h]: 10,000 h
  • Rated Ripple Current [mArms/100kHz]: 1,660 mArms/100kHz
  • Temp max [℃]: 105 °C
  • Manufacturer: Suncon
100HEH15MT

16HEHZ270MT

  • Height [mm]: 9.5 mm
  • Diameter [mm]: 8 mm
  • Rated Voltage [V]: 16 V
  • Capacitance [µF]: 270 µF
  • Endurance [h]: 5,000 h
  • Rated Ripple Current [mArms/100kHz]: 2,820 mArms/100kHz
  • Temp max [℃]: 105 °C
  • Manufacturer: Suncon
16HEHZ270MT

16HEHZ470MT

  • Height [mm]: 9.5 mm
  • Diameter [mm]: 10 mm
  • Rated Voltage [V]: 16 V
  • Capacitance [µF]: 470 µF
  • Endurance [h]: 5,000 h
  • Rated Ripple Current [mArms/100kHz]: 3,750 mArms/100kHz
  • Temp max [℃]: 105 °C
  • Manufacturer: Suncon
16HEHZ470MT

16HEHZ560MT

  • Height [mm]: 11.5 mm
  • Diameter [mm]: 10 mm
  • Rated Voltage [V]: 16 V
  • Capacitance [µF]: 560 µF
  • Endurance [h]: 5,000 h
  • Rated Ripple Current [mArms/100kHz]: 4,340 mArms/100kHz
  • Temp max [℃]: 105 °C
  • Manufacturer: Suncon
16HEHZ560MT
Temp max [°C]
