Electromagnetic transducer

Overview of the advantages of Electromagnetic SMD Transducer:

  • Smallest Transducer (AC driven) available 5x5x2mm
  • Max SPL at low voltage
  • SMD reflow solderable
  • Wider frequency range than Piezo sounders
  • Ideal for limited space and multiple frequency applications like kitchen devices, medical- and health care accessories, cellular phones, PDS, etc.
  • Sound solutions for automotive applications on request

There are 10 of 21 products shown.

YX-904A-01

  • Height [mm]: 4.2 mm
  • Diameter [mm]: 9.2 mm
  • Rated Voltage [V]: 1.5 V
  • Rated Current [mA]: 30 mA
  • Sound Output at 10cm [dB]: 80 dB
  • Resonant Frequency [Hz]: 2,731 Hz
  • Manufacturer: Qinlon
YX-904A-01

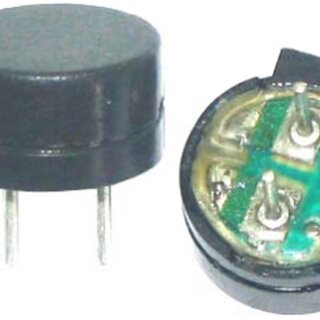

YC-905-01

  • Height [mm]: 5 mm
  • Diameter [mm]: 9.6 mm
  • Rated Voltage [V]: 1.5 V
  • Rated Current [mA]: 30 mA
  • Sound Output at 10cm [dB]: 87 dB
  • Resonant Frequency [Hz]: 2,731 Hz
  • Manufacturer: Qinlon
YC-905-01

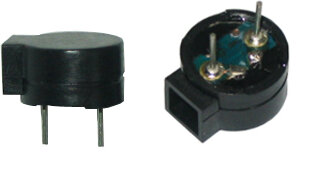

YX-12075-01

  • Height [mm]: 7.2 mm
  • Diameter [mm]: 12 mm
  • Rated Voltage [V]: 1.5 V
  • Rated Current [mA]: 30 mA
  • Sound Output at 10cm [dB]: 90 dB
  • Resonant Frequency [Hz]: 2,731 Hz
  • Manufacturer: Qinlon
YX-12075-01

YC-905-03

  • Height [mm]: 5 mm
  • Diameter [mm]: 9.6 mm
  • Rated Voltage [V]: 3 V
  • Rated Current [mA]: 30 mA
  • Sound Output at 10cm [dB]: 87 dB
  • Resonant Frequency [Hz]: 2,731 Hz
  • Manufacturer: Qinlon
YC-905-03

FDYX-0520S-03

  • Length [mm]: 5 mm
  • Width [mm]: 5 mm
  • Height [mm]: 2 mm
  • Rated Voltage [V]: 3 V
  • Sound Output at 10cm [dB]: 75 dB
  • Resonant Frequency [Hz]: 4,000 Hz
  • Manufacturer: Qinlon
FDYX-0520S-03

FDYX-0530S-03

  • Length [mm]: 5 mm
  • Width [mm]: 5 mm
  • Height [mm]: 3 mm
  • Rated Voltage [V]: 3 V
  • Sound Output at 10cm [dB]: 78 dB
  • Resonant Frequency [Hz]: 4,000 Hz
  • Manufacturer: Qinlon
FDYX-0530S-03

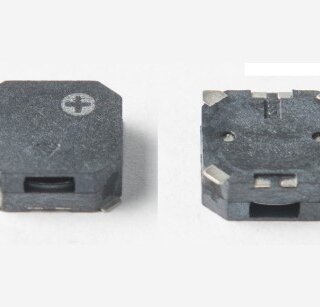

YX0725S-03

YX0725S-03

YX-904A-03

  • Height [mm]: 4.2 mm
  • Diameter [mm]: 9.2 mm
  • Rated Voltage [V]: 3 V
  • Rated Current [mA]: 30 mA
  • Sound Output at 10cm [dB]: 80 dB
  • Resonant Frequency [Hz]: 2,731 Hz
  • Manufacturer: Qinlon
YX-904A-03

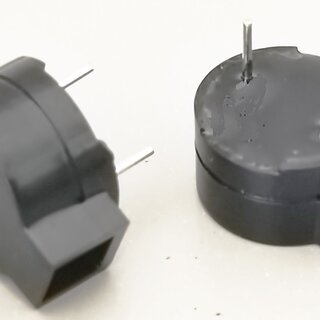

YX-12075-03

  • Height [mm]: 7.2 mm
  • Diameter [mm]: 12 mm
  • Rated Voltage [V]: 3 V
  • Rated Current [mA]: 30 mA
  • Sound Output at 10cm [dB]: 90 dB
  • Resonant Frequency [Hz]: 2,731 Hz
  • Manufacturer: Qinlon
YX-12075-03

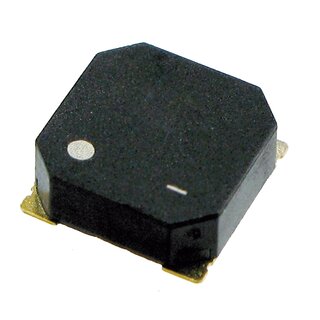

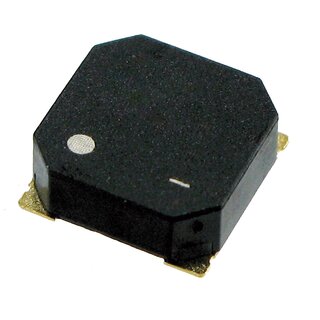

FDYX-801S-0327

  • Length [mm]: 8.5 mm
  • Width [mm]: 8.5 mm
  • Height [mm]: 3 mm
  • Rated Voltage [V]: 3 V
  • Rated Current [mA]: 50 mA
  • Sound Output at 10cm [dB]: 85 dB
  • Resonant Frequency [Hz]: 2,731 Hz
  • Manufacturer: Qinlon
FDYX-801S-0327
Length [mm]

Width [mm]

Height [mm]

Diameter [mm]

Rated Voltage [V]

Rated Current [mA]

Sound Output at 10cm [dB]

Resonant Frequency [Hz]
