Level Transmitter

Transmitters are a key component of measurement and control technology in industrial systems and applications. They supply measurement data for the control, monitoring or supervision of hydraulic or pneumatic processes. With their standardized output signal interfaces such as 4~20mA or 0~10V, these transmitters are an indispensable part of the IoT infrastructure.

There are 7 of 7 products shown.

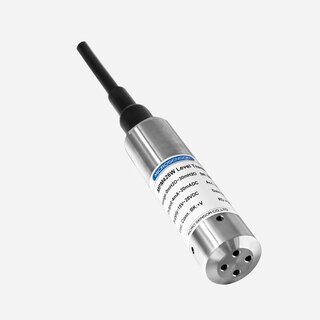

MPM426W

  • Description: The upper stainless steel cap is removable, which prevents accidental damage to the membrane and facilitates regular cleaning.
  • Measured range [mH2O]: 200 mH2O
  • Total accuracy [±%FS]: 0.25 ±%FS
  • Output signal: 4mA~20mADC
  • Power supply min. [VDC]: 15 V
  • Power supply max. [VDC]: 28 V
  • Manufacturer: Microsensor
MPM426W

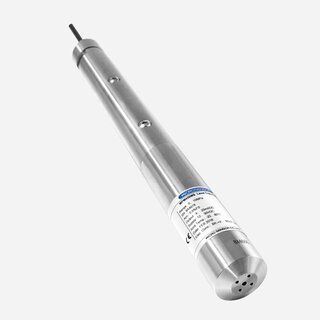

MPM426WS

  • Description: Deepwater Level Transmitter
  • Measured range [mH2O]: 2,000 mH2O
  • Total accuracy [±%FS]: 0.5 ±%FS
  • Output signal: 4mA~20mADC
  • Power supply min. [VDC]: 12 V
  • Power supply max. [VDC]: 30 V
  • Manufacturer: Microsensor
MPM426WS

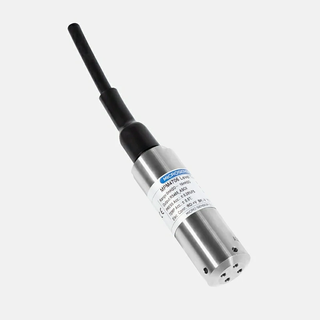

MPM4700

  • Description: Intelligent Level Transmitter. Accuracy: ±0.1%FS (Typ.)
  • Measured range [mH2O]: 200 mH2O
  • Total accuracy [±%FS]: 0.1 ±%FS
  • Output signal: 4mA~20mADC
  • Power supply min. [VDC]: 10 V
  • Power supply max. [VDC]: 30 V
  • Manufacturer: Microsensor
MPM4700

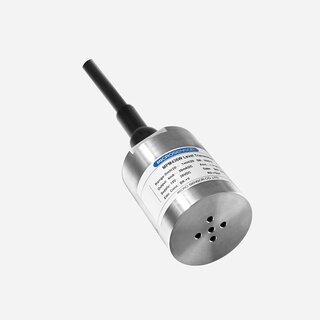

MPM436W

  • Description: Level Transmitter for Low Level
  • Measured range [mH2O]: 2 mH2O
  • Total accuracy [±%FS]: 0.5 ±%FS
  • Output signal: 4mA~20mADC
  • Power supply min. [VDC]: 15 V
  • Power supply max. [VDC]: 28 V
  • Manufacturer: Microsensor
MPM436W

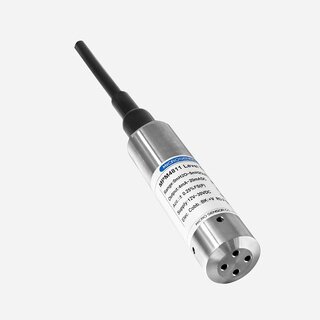

MPM4811

  • Description: Temperature/Level Dual Outputs Submersible Level Transmitter
  • Measured range [mH2O]: 200 mH2O
  • Total accuracy [±%FS]: 0.5 ±%FS
  • Output signal: 4mA~20mADC
  • Power supply min. [VDC]: 12 V
  • Power supply max. [VDC]: 30 V
  • Manufacturer: Microsensor
MPM4811

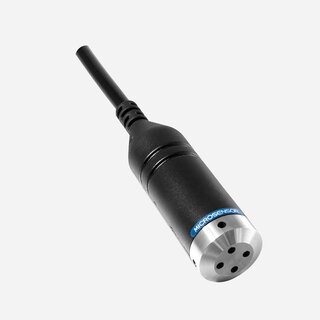

MPM489W

  • Description: 22mm Level Transmitter for Multiple Applications and Customization
  • Measured range [mH2O]: 200 mH2O
  • Total accuracy [±%FS]: 0.5 ±%FS
  • Output signal: 4mA~20mADC
  • Power supply min. [VDC]: 3.3 V
  • Power supply max. [VDC]: 28 V
  • Manufacturer: Microsensor
MPM489W

MPM489WZ4

  • Description: 17mm Submersible Level Transmitter
  • Measured range [mH2O]: 200 mH2O
  • Total accuracy [±%FS]: 0.5 ±%FS
  • Output signal: 4mA~20mADC
  • Power supply min. [VDC]: 11 V
  • Power supply max. [VDC]: 28 V
  • Manufacturer: Microsensor
MPM489WZ4
Measured Range up to

Output Signal

Description
