Baolong

Baolong develops compact, innovative and reliable vibration motors.

Zhejiang Baolong M&E Co, Ltd is a leading manufacturer of vibration motors in Wenzhou, Zhejiang, China. The company was founded in 1986. Strong research and development capabilities and excellent production technology have created the high-quality brand. The workforce consists of 822 employees. The production capacity is over 20 million units per month with a production area of 12,000m².

Product portfolio

Baolong's product portfolio includes mini vibration motors and micro DC motors. These are divided into coin types, cylinder types, SMD motors and linear vibration motors.

Applications

  • Haptic feedback

There are 10 of 32 products shown.

BVM1020-X6-1RU

  • Diameter [mm]: 10 mm
  • Height [mm]: 2.1 mm
  • Rated Voltage [V]: 3 V
  • Max. Rated Speed [rpm]: 13,500 rpm
  • Max. Rated Current [mA]: 85 mA
  • Operating Temp [°C]: -30 °C ... 70 °C
  • Manufacturer: Baolong
BVM1020-X6-1RU

BVM0827-FP2-1T02U-1

  • Diameter [mm]: 8 mm
  • Height [mm]: 2.7 mm
  • Rated Voltage [V]: 1.3 V
  • Max. Rated Speed [rpm]: 6,500 rpm
  • Max. Rated Current [mA]: 37 mA
  • Operating Temp [°C]: -30 °C ... 70 °C
  • Manufacturer: Baolong
BVM0827-FP2-1T02U-1

BVM0834-X25-0TU-MF

  • Diameter [mm]: 8 mm
  • Height [mm]: 3.4 mm
  • Rated Voltage [V]: 3 V
  • Max. Rated Speed [rpm]: 13,500 rpm
  • Max. Rated Current [mA]: 85 mA
  • Operating Temp [°C]: -30 °C ... 70 °C
  • Manufacturer: Baolong
BVM0834-X25-0TU-MF

BVM0820-X8-03U-Z

  • Diameter [mm]: 8 mm
  • Height [mm]: 2.1 mm
  • Rated Voltage [V]: 3 V
  • Max. Rated Speed [rpm]: 10,000 rpm
  • Max. Rated Current [mA]: 85 mA
  • Operating Temp [°C]: -30 °C ... 70 °C
  • Manufacturer: Baolong
BVM0820-X8-03U-Z

BVM0824-TH02-U

  • Diameter [mm]: 8 mm
  • Height [mm]: 2.4 mm
  • Rated Voltage [V]: 3 V
  • Max. Rated Speed [rpm]: 10,000 rpm
  • Max. Rated Current [mA]: 85 mA
  • Operating Temp [°C]: -30 °C ... 70 °C
  • Manufacturer: Baolong
BVM0824-TH02-U

BLP-3211-H

  • Length [mm]: 11 mm
  • Width [mm]: 3.8 mm
  • Height [mm]: 2.9 mm
  • Rated Voltage [V]: 2.7 V
  • Max. Rated Speed [rpm]: 13,000 rpm
  • Max. Rated Current [mA]: 100 mA
  • Manufacturer: Baolong
BLP-3211-H

BLT-3211H

  • Length [mm]: 9.5 mm
  • Diameter [mm]: 2.5 mm
  • Rated Voltage [V]: 1.6 V
  • Max. Rated Speed [rpm]: 16,000 rpm
  • Max. Rated Current [mA]: 80 mA
  • Manufacturer: Baolong
BLT-3211H

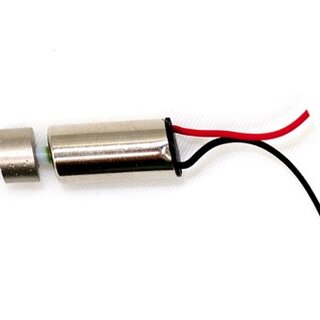

BL6C1KW2-X15NC3

  • Length [mm]: 16.3 mm
  • Rated Voltage [V]: 3 V
  • Max. Rated Speed [rpm]: 11,000 rpm
  • Max. Rated Current [mA]: 85 mA
  • Manufacturer: Baolong
BL6C1KW2-X15NC3

BL6C1KT-X45N

  • Length [mm]: 17.63 mm
  • Rated Voltage [V]: 3 V
  • Max. Rated Speed [rpm]: 14,500 rpm
  • Max. Rated Current [mA]: 150 mA
  • Manufacturer: Baolong
BL6C1KT-X45N

BL4I2S-GF

  • Length [mm]: 13.2 mm
  • Width [mm]: 6.5 mm
  • Height [mm]: 5.8 mm
  • Rated Voltage [V]: 3 V
  • Max. Rated Speed [rpm]: 11,000 rpm
  • Max. Rated Current [mA]: 100 mA
  • Manufacturer: Baolong
BL4I2S-GF
