SPS 2025
Connectors

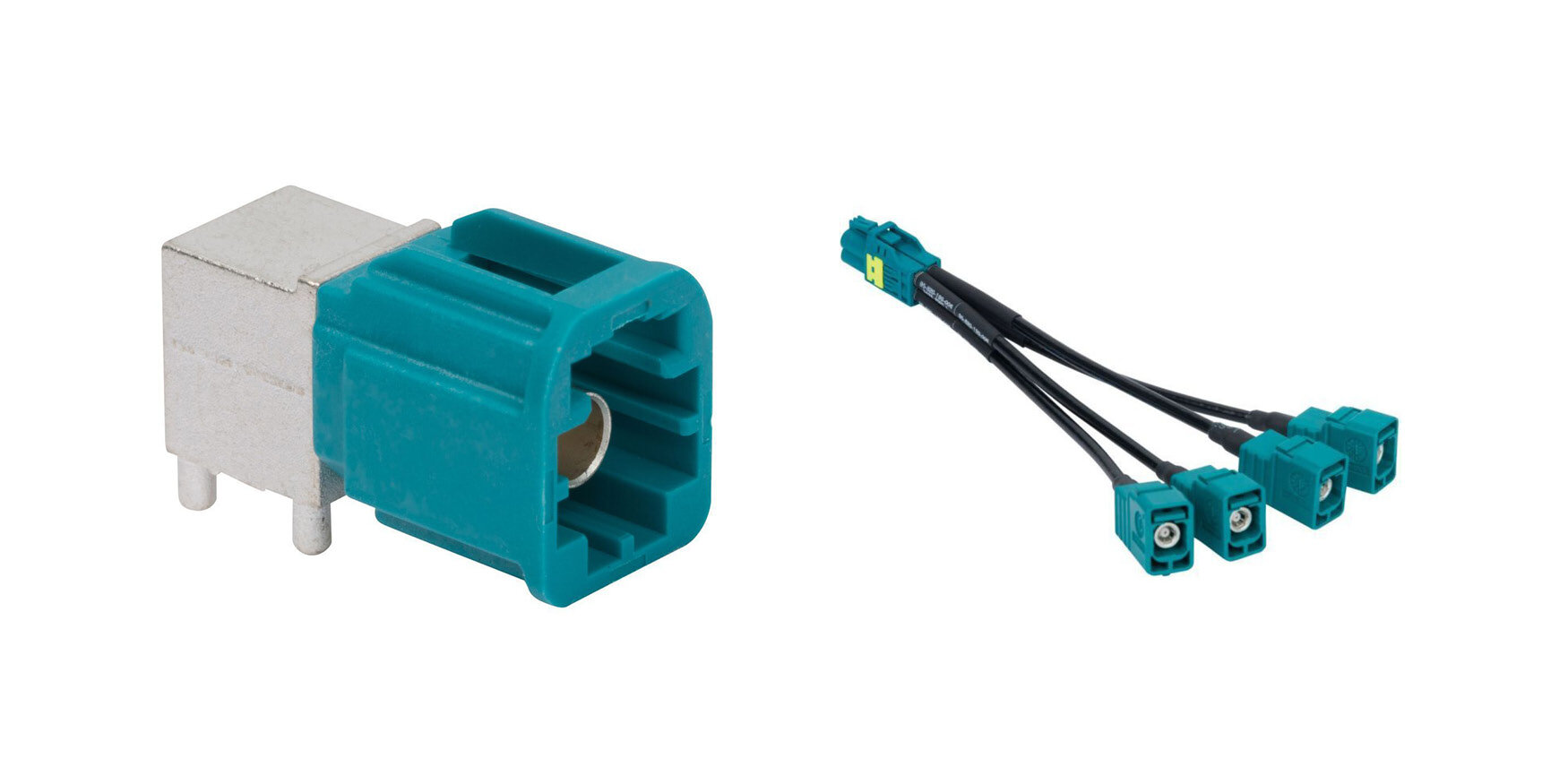

Amphenol RF offers the AUTOMATE Series Type A Mini-FAKRA Quad-port and Dual-port breakout cables, which are based on low-loss RG-174 and TFC 302LL cables. These cable assemblies feature industry-standard Snap-on interfaces at all ends for secure connection and easy installation.
Features / advantages
- Compact, modular housing
- Multi-port configuration
- Low-loss, flexible cable
- Universal Z-coding
- Low insertion and withdrawal forces
RF Connector AUTOMATE Type A Mini-FAKRA
- Single Port PCB Through Hole Right Angle Plug
- 50 Ohm
- Z-Code
RF Assembly AUTOMATE Type A Mini-FAKRA
- Quad Straight Jack to Gen 3.5 FAKRA Straight Jack IP67 TFC302LL
6 Inches
• Comprehensive line for M12 Series
• Various assembly style
• Quick locking system available
Series
- M8/Guided M8
- M10.5
- M12
- Heavy Duty (M20)
- M23
A-Coded for Profibus/DeviceNet
B-Code for Fieldbus (Profibus/Interbus)
D-Code for PROFINET/Ethernet
X-Code For 10G Ethernet
- Coupling System: Metal/Plastic Threaded
- M12 Receptacle SMT
- AWG: 22 to 26 AWG
- Operation Voltage: 30 to 250V AC/DC
- Current Rating: 0.5A to 4A
- Mating Cycle: 1,000 +
Comprehensive range of accessories
Connectors
THE BASIS FOR INDUSTRY 4.0 AND THE INDUSTRIAL INTERNET OF THINGS (IoT)
Amphenol LTW’s SPE mechanical interfaces are all designed and made according to IEEE 802.3bp standard offering three mechanical mating interfaces all IP67 up and above giving you the freedom to choose the interconnects suitable to your needs and requirements for industrial and ruggedized applications.
- Multiple mechanical Interfaces IP67 and above for industrial and ruggedized applications.
- Freedom of choices per your needs and requirements.
- Budgets, pay for what you need.
- Providing Low Power & Simply Networking On End-point Sensors.
- Cost-Effective, smaller & lighter than standard 4 pairs Ethernet cable.
- Compatible 802.3 10/100/1000 Base-T1 data rates as existing technologies.
- Receptacle IP67 UNMATED waterproof, also available in double ended and field installable.
- Vibration resistance 20g (10 ~ 2,000 Hz).
- Supports PoDL (Power Over Data Lines).

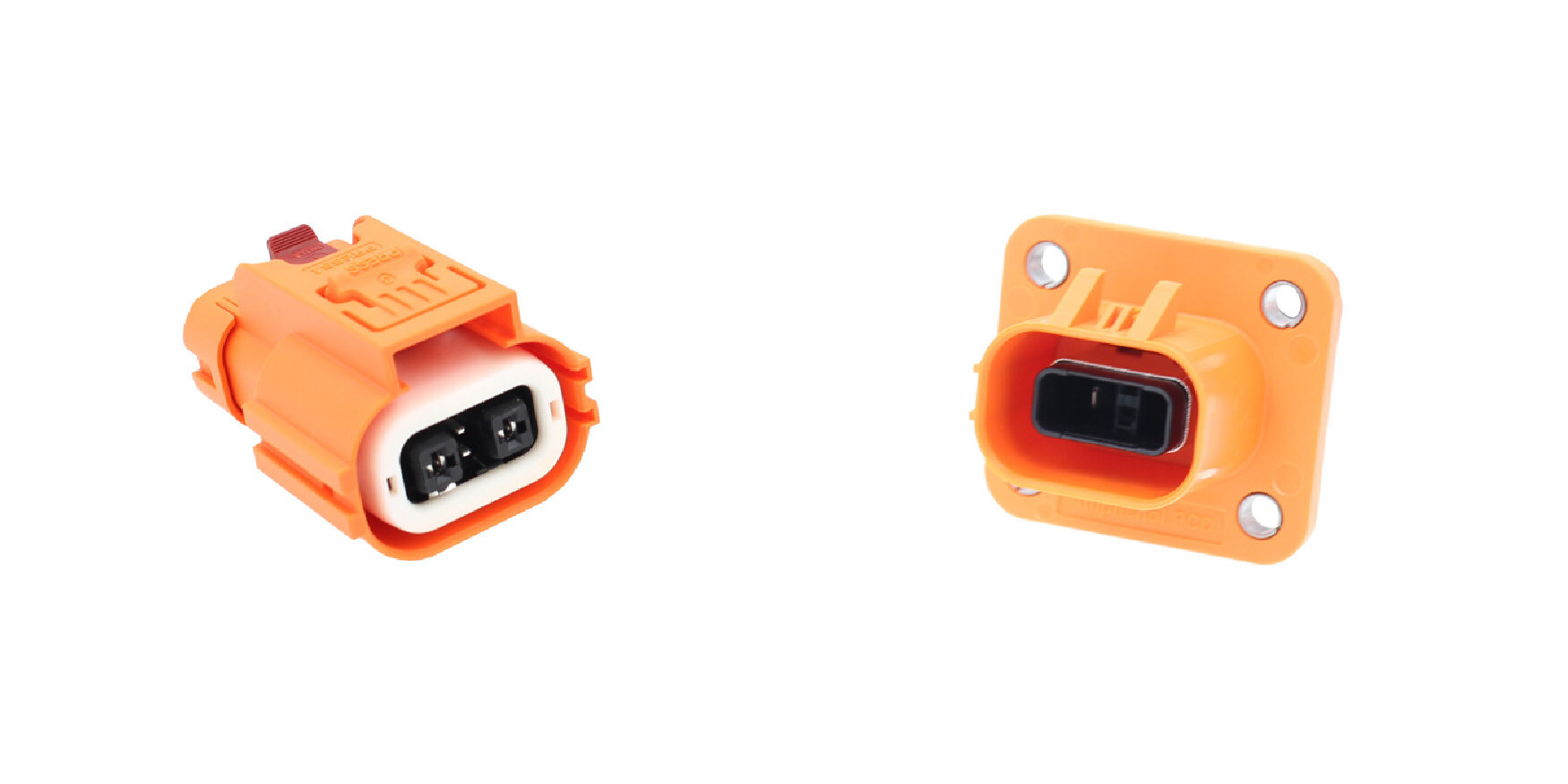

HVSL282062A104
- Female cable connector; straight; 4mm²; with HVIL
- Number of positions (w/o PE) : 2
- Rated voltage : 800 V
- Rated current (40 °C) : 23 A
- IP-class mated: IP69k
- Termination: crimp
- Coding position : A-coding
HVSL282022A
- Male panel connector; straight; with HVIL
- Number of positions (w/o PE) : 2
- Rated voltage : 1000 V
- Rated current (40 °C) : 23 A
- IP-class mated : IP69k
- Termination: screw
- Coding position : A-coding
Fastest connection technology for conductors
- Push-in direct locking technology with operating lever
- Several clamping units can be held open simultaneously, simplifying the connection of multi-core cables
- Ensuring long-lasting reliable connections
- Tool-free, quick and safe wire connection with simple lever action
| Product Model | AQC20 |
| Voltage Rating | 250V |
| Current Rating | 20A |
| Solid Wire | 16-14 AWG |
| Stranded Wire | 16-14 AWG |
| Withstanding Voltage | 1.6 KV |
| Wire Strip Length | 9.10mm |
Product advantages
- Strong and reliable
- Easy to operate
- Cost saving
- Durable in harsh enviroments
Application field
- Building controls
- Internet of Thinks (IoT)
- Thermostats
- Door entry & Access control
- Security systems & Intrusion detection sensor
- Room sensors & Room operating units
- Fire damper modules
- KNX modules
- Elevator control
GA-001
- Pitch: 5.0
- Poles: 1P-12P
- Voltage rating: 300 V
- Current rating: 7A
- Conductor Connection: AWG 18-24
GB-001 With Switch
- Pitch: 5.0
- Poles: 1P-12P
- Voltage rating: 150 V
- Current rating: 6A
- Conductor Connection: AWG 16-22

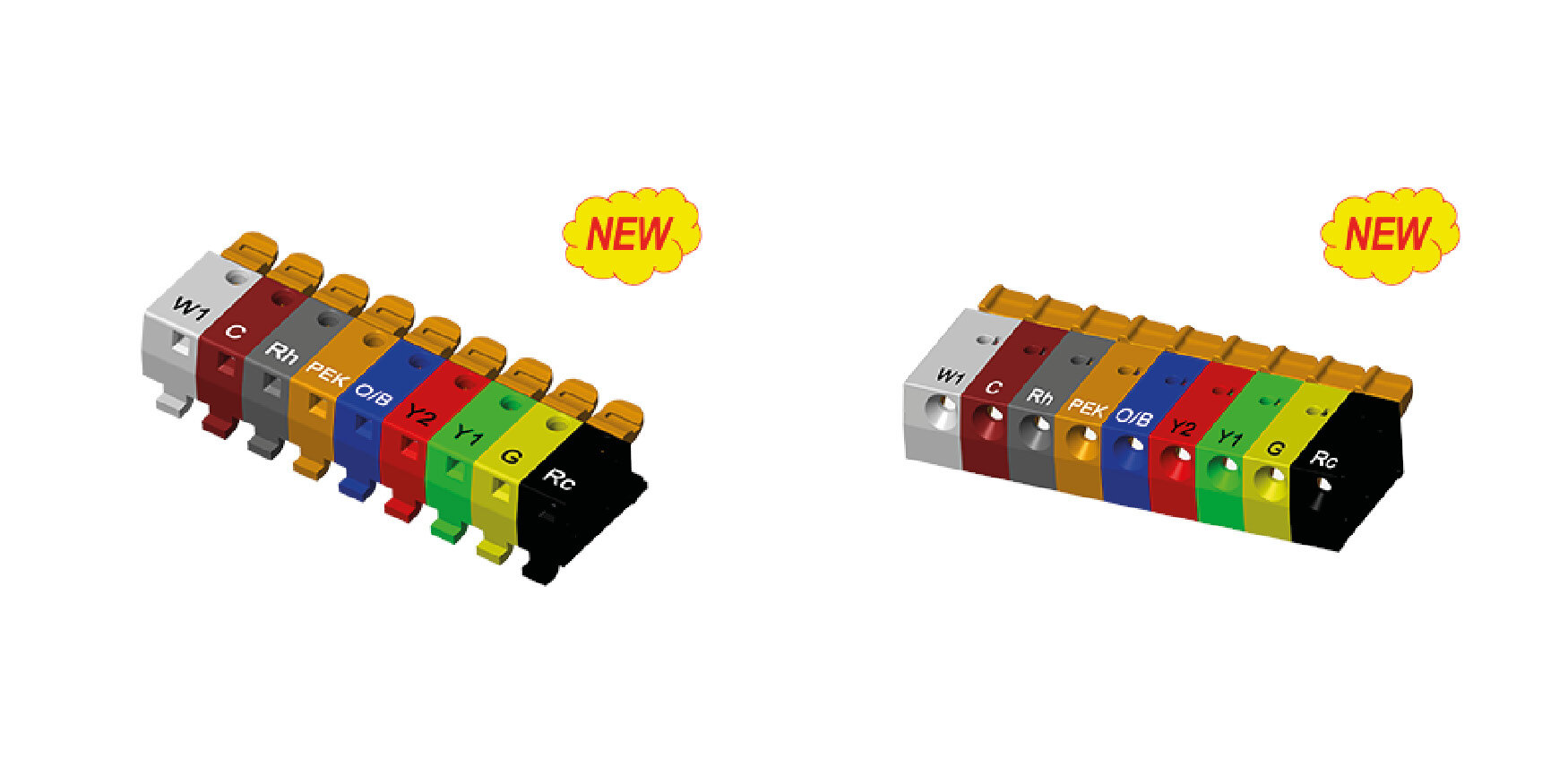

PS - PUSH_IN
- This new plug allows stranded wires to be pushed-in.
- No need to use a tool to clamp.
- Compatible with existing headers, easy upgrade of the plug
- 8 different body colors available
QT – Fixed connector
- Using the latest PUSH-IN technolgy, the wiring efficiency increased by 70%.
- Multiple clamping units can be kept open at the same time, simplifying the connection of multi-core cables.
- To maintain a long-term reliable connection, the spring connection ensures the stability of the wire.
- Next-generation intuitive tool-free operation.
- Provide sound feedback when wiring, convenient and fast.
The lever position indicates the connection status.

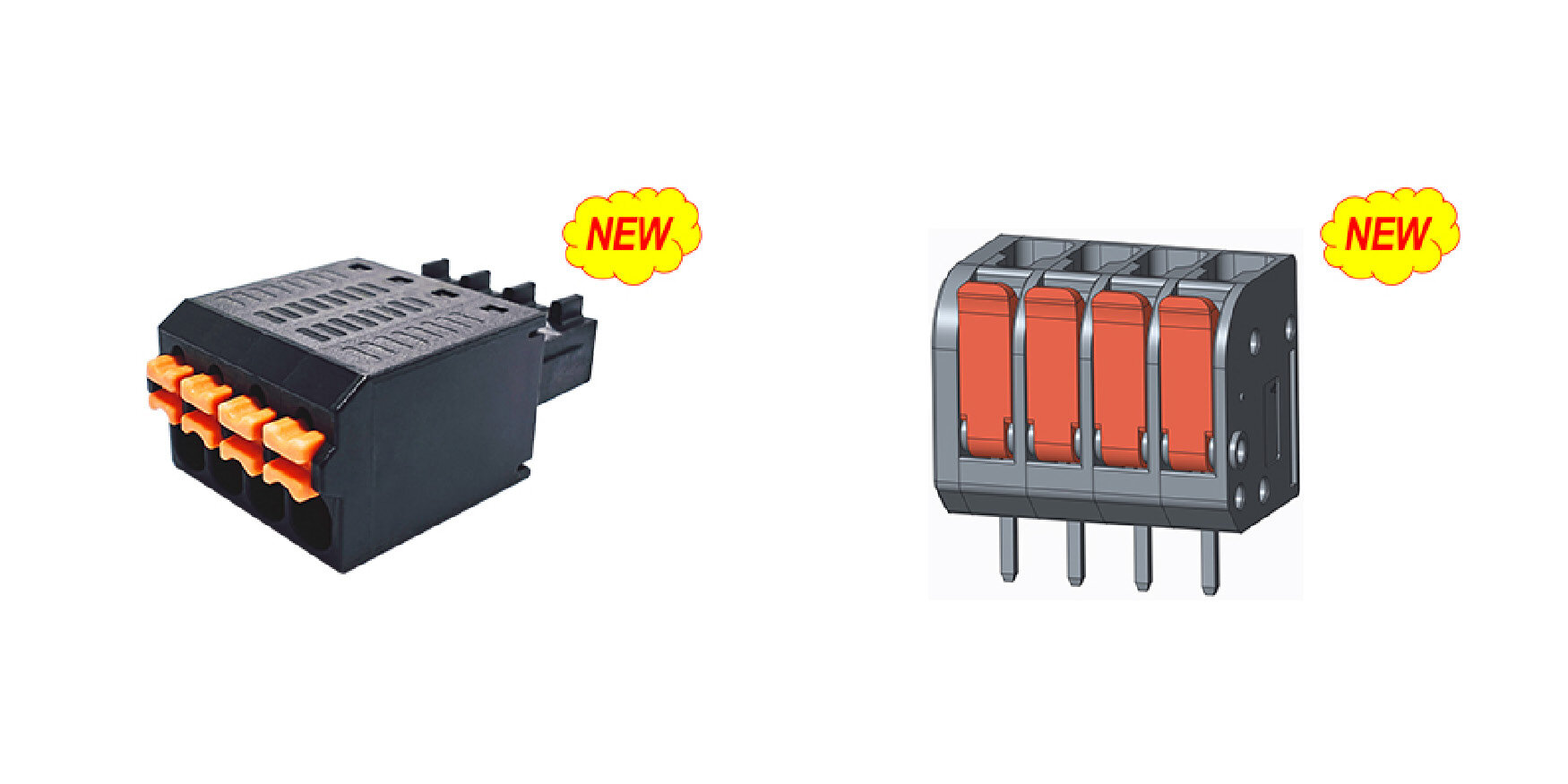

PS – PUSH-IN
- Pitch: 3.5
- Poles: 2P-16P
- Voltage rating: 300V
- Current rating: 9A
- Wire Range: AWG 16-20
QT - Fixed Connector
- Pitch: 5.0/7.5/10.0
- Poles: 2P-24P/2-16P/2-12P
- Voltage rating: 300V
- Current rating: 16A
- Wire Range: AWG 12-24

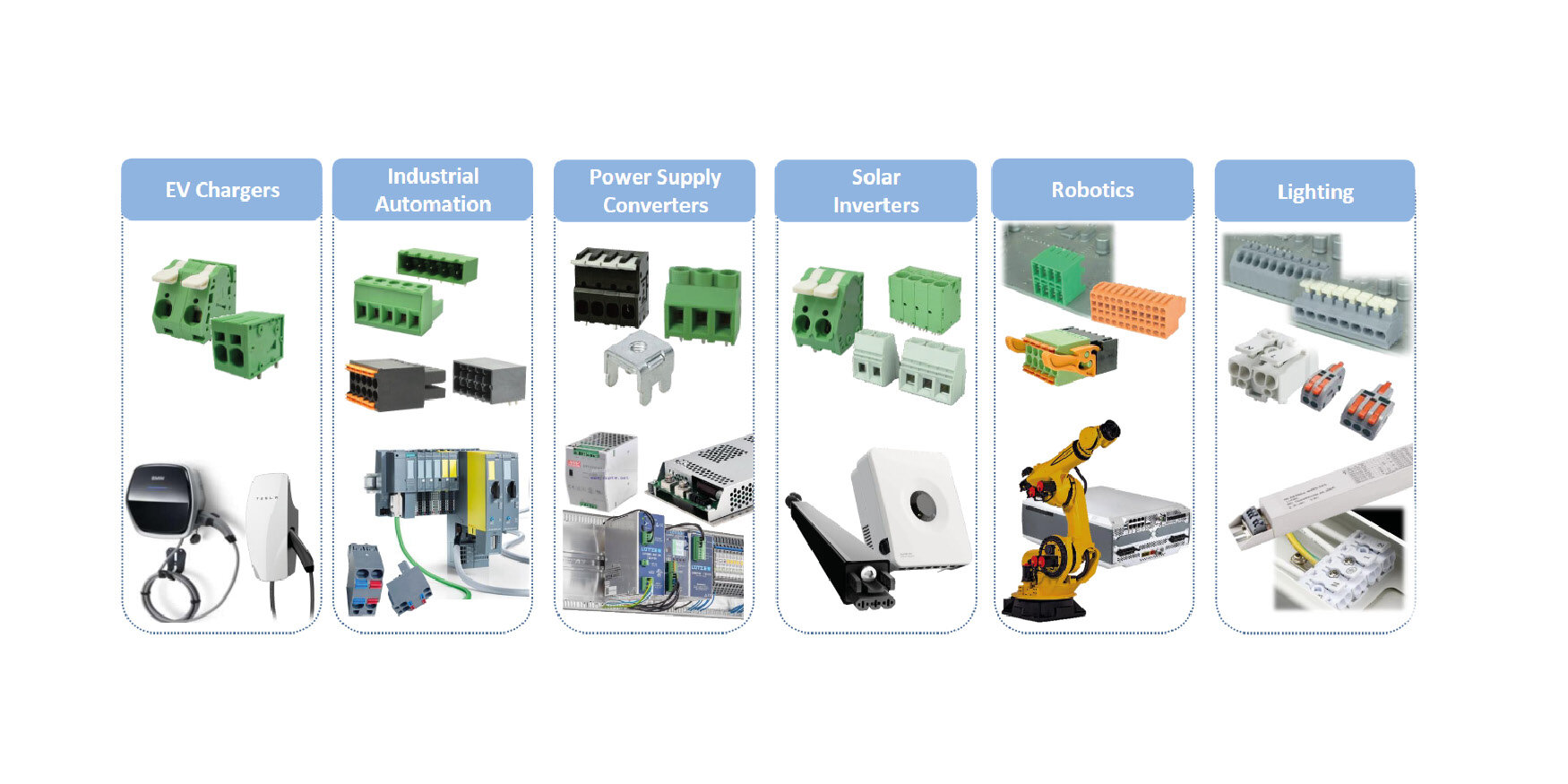

Fixed Type Terminal Block
- Wire Protector System
- Rising Clamp System
- Spring Clamp System
Pluggable Type Terminal Block
- Pin-Plugs Pluggable System
- Header for Pluggable System
- Screw Clamp Plugs for Pluggable System
- Spring Clamp Plugs for Pluggable System
Thermal Management
FORMAPad® is specially formulated to offer excellent wetting and minimum pump out property with tacky texture. Dispensable and screen printable consistency makes easy in production environment. Offers excellent stability over a wide temperature range with high thermal conductivity and low thermal resistance. It’s a high-performance thermal grease designed to meet the thermal, reliability and low-price requirements of high-end chipset, graphic processors trend ever-faster clock speeds. RoHS compliant and halogen-free.
Features
- High thermal conductivity (2.6 W/m-K),Tacky, Thixotropic paste
- Excellent wetting property
- RoHS compliant-halogen Free
- Thin bond line thickness <25 micron
The COOLPhase® series is made up of non-silicone high-performance polymer matrix materials that have exceptional wettability, reducing the thermal contact resistance between heat-generating and heat-dissipating surfaces. At operating temperatures between 50 °C and 60 °C, this tough PCM material will soften, naturally flowing to fill the air gaps between contact surfaces and providing long-term reliability with no degradation like those found in thermal pastes.
Features
- High Thermal condutivity
- Super low contact resistance
- Easy to assemble
- RoHs & REACH compliant

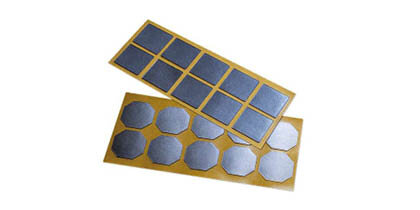

COOLPad® is a line of high-performance thermal interface pads, developed to address the industry’s growing requirements for easy application, low levels of thermal resistance and high conformability, even at the most challenging and uneven surfaces. COOLPad® is especially suitable for applications with low clamping forces between the heat generating component and the heat dissipation surface.
Features
- Low thermal resistance
- High conformability
- Electrically insulating
- RoHS & REACH compliant
FlexGRAF® is a thermal interface material with superior thermal conductivity, both in and trough-plane, which enables a homogenous thermal distribution inhibiting the formation of hot-spots. Its flexible nature allows it to be cut into diverse geometries and its good compressibility reduces thermal contact resistance, making it a good choice for applications that require long-term performance. FlexGRAF® is RoHS and Reach Compliant.
Features
• High operating temperature resistance up to 400°C
• Very high heat dissipation
• Might be laminated with a electrical
• Insulation foil to offer dielectric resistance
ThermalTAPE® is a thermally conductive double sided adhesive tape with a very high mechanical strength and good thermal transfer performance. It is made from a fiber glass base combined to ceramic nanoparticles. ThermalTAPE® uses an acrylic PSA Adhesive with superior adhesion properties and can be used on a wide variety of substrates such as aluminum, Plastics, PMMA, etc.
Features
- High mechanical and adhesive strength
- To attach heat-sinks to aluminum or
- FR4 PCBs, replacing screws,
holders and fasteners - Electrically insulating
- RoHS and REACH compliant
- Good thermal conductivity
The xD (Multidimension) series evaluation platform utilizes Multiple GD products, provides possibility of Multiple HW/SW combinations, and aims to support evaluation of Multiple application in one kit.
GD-xD-W515-EVAL including:
- Main control board with GigaDevice
- GD32W515PIQ6 MCU
- GD30BC2416 BMIC
- GD30LD1002 LDO
- GD25Q128E NOR Flash
- GD-Link Debugger. etc.
Fingerprint Board with GigaDevice GSL6157 Fingerprint sensor
- Display board with 0,96-inch OLED

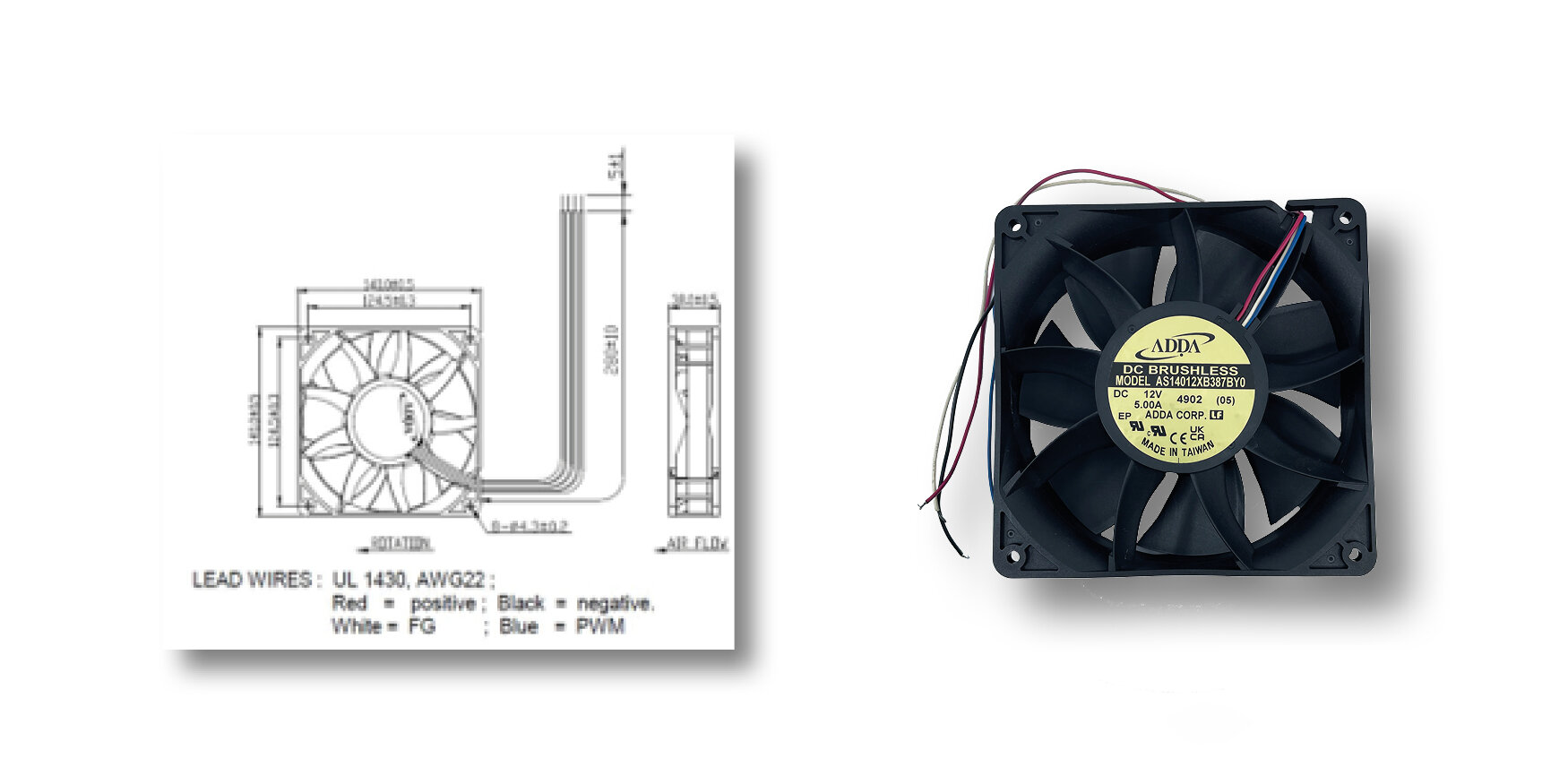

Manufacturer: ADDA
Part number: AS14012XB387BY0
Dimensions: 140 x 140 x 38 mm
Maximum air volume: 324,313 CFM
Rated voltage: 12 V DC
Polarity protection, blockage protection
Speed control: PWM
Output signal: revolution indication

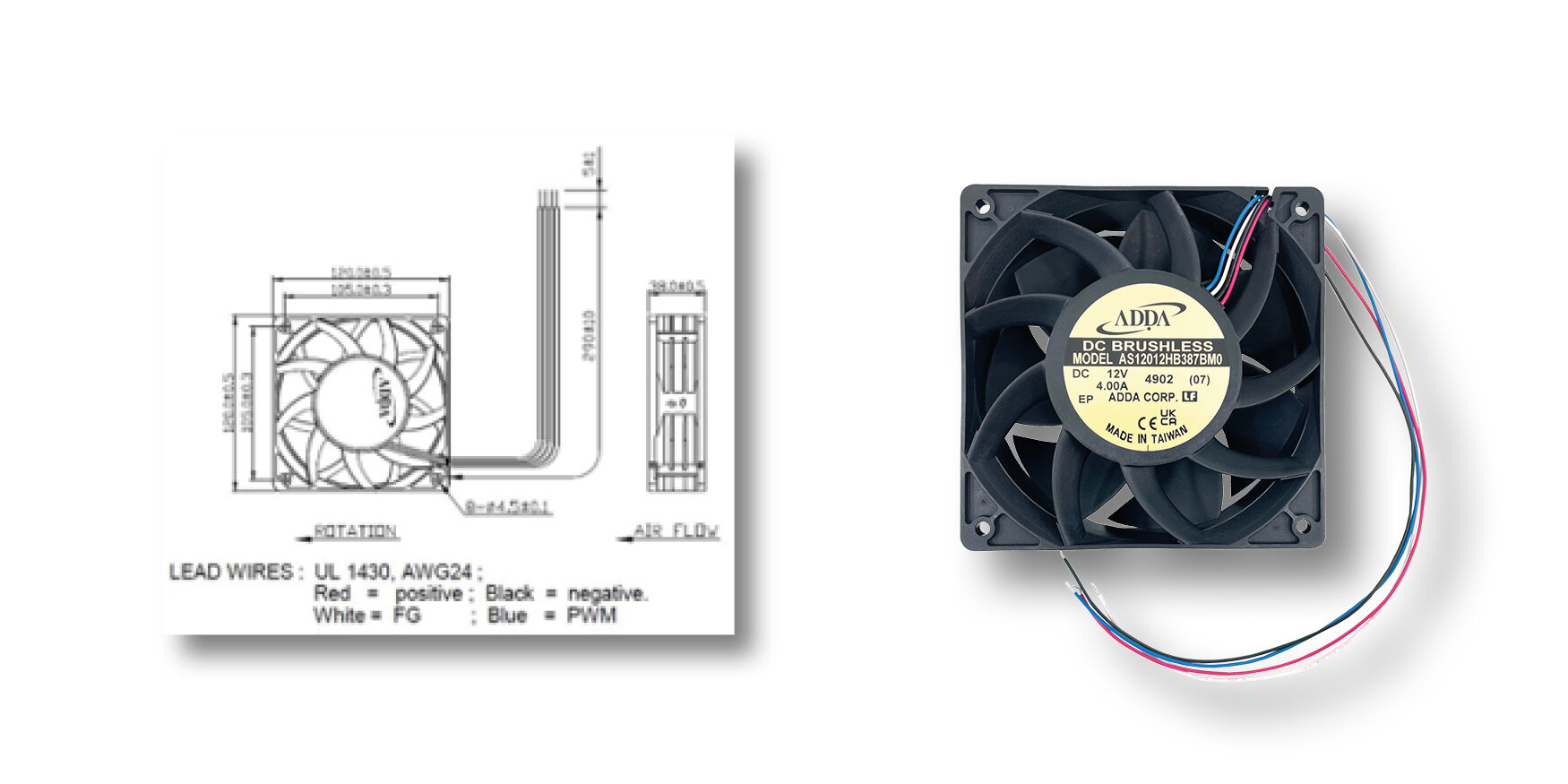

Manufacturer: ADDA
Part number: AS12012HB387BM0
Dimensions: 120 x 120 x 38 mm
Maximum air volume: 210,29 CFM
Rated voltage: 12 V DC
IP protection: According to IP68
Polarity protection, blockage protection
Speed control: PWM
Output signal: revolution indication
Manufacturer: ADDA
Part number: AS09212UB385BM0(07NS)
Dimensions: 92 x 92 x 38 mm
Maximum air volume: 178,910 CFM
Rated voltage: 12 V DC
IP protection: According to IP68
Polarity protection, blockage protection
Speed control: PWM
Output signal: revolution indication

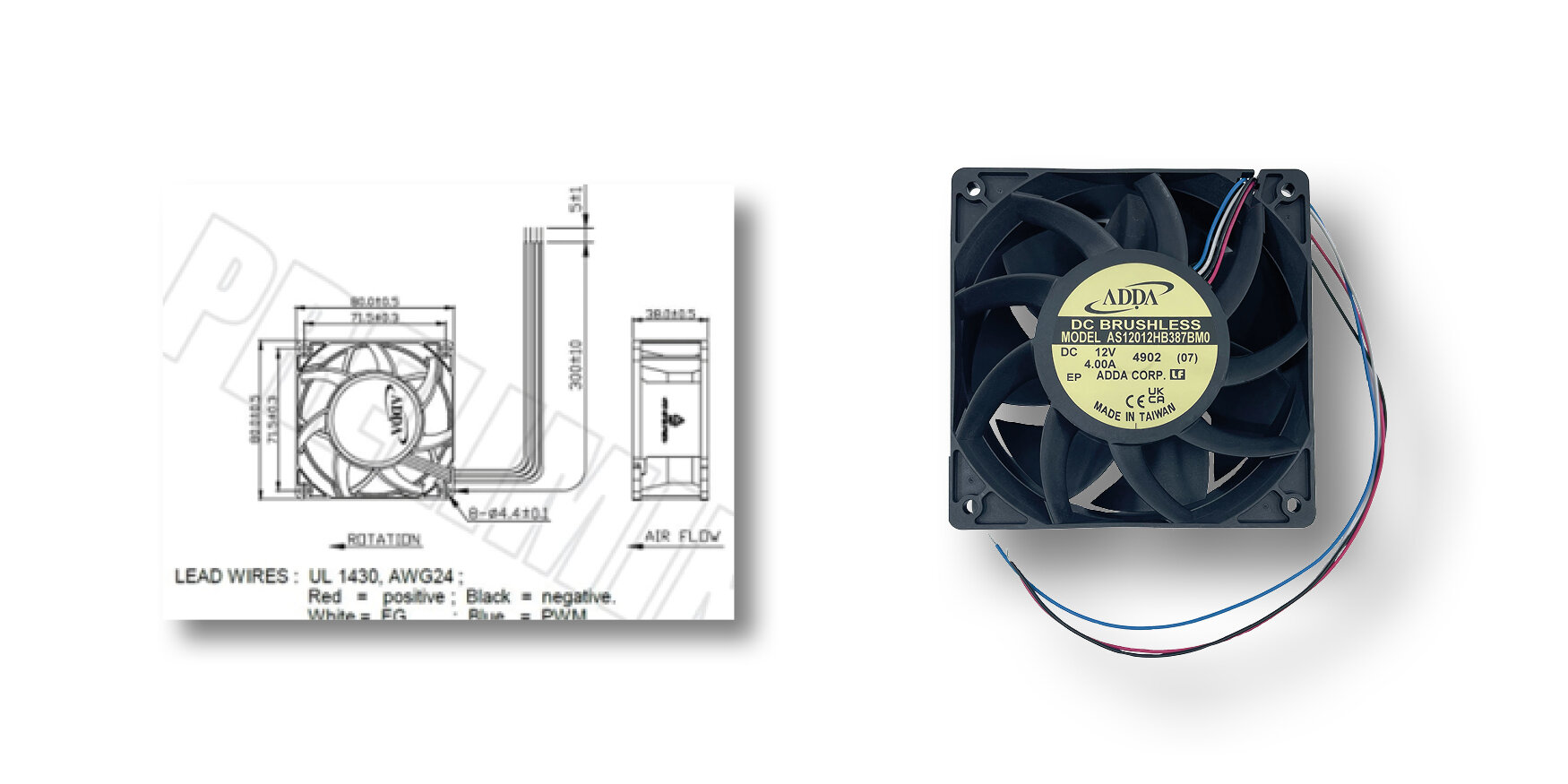

Manufacturer: ADDA
Part number: AS08012UB385BM0
Dimensions: 80 x 80 x 38 mm
Maximum air volume: 132,031 CFM
Rated voltage: 12 V DC
Polarity protection, blockage protection
Speed control: PWM
Output signal: revolution indication
Temperature Sensors
Manufacturer: Semitec, Tateyama, CTS TEWA
Semitec
Semiconductor based ceramic resistors, guaranteed long term stability of minimum 10 years, high precision thermistor featuring extremely small B-value tolerance and resistance.
Tateyama
Thik film thermistors based on AI² O³ substrate, patented core material technology, wide variety and customization of R/T curves, guaranteed long-term stability of minimum 10 years
CTS TEWA
Semiconductor based ceramic resistors, wide range of assembled NTC/PTC/PtRTD temperature probes, customized sensors on demand with different cables and connectors
Magnetiv Field Sensors
Manufacturer: Magnesensor
Magnesensor Technology (MST) is a fabless semiconductor technology corporation offering integrated circuit Hall Effect sensors. The company was established in 2003 in the State of New Hampshire, USA. Magnesensor supplies the most advanced technology at, the highest quality standard at a competitive price.
Portfolio of magnetic field sensors
• Hall switches
• Analog Hall Sensors
• Angular Sensors
• Current sensors
Customer designed parts (e.g. special switching fields) are possible.
